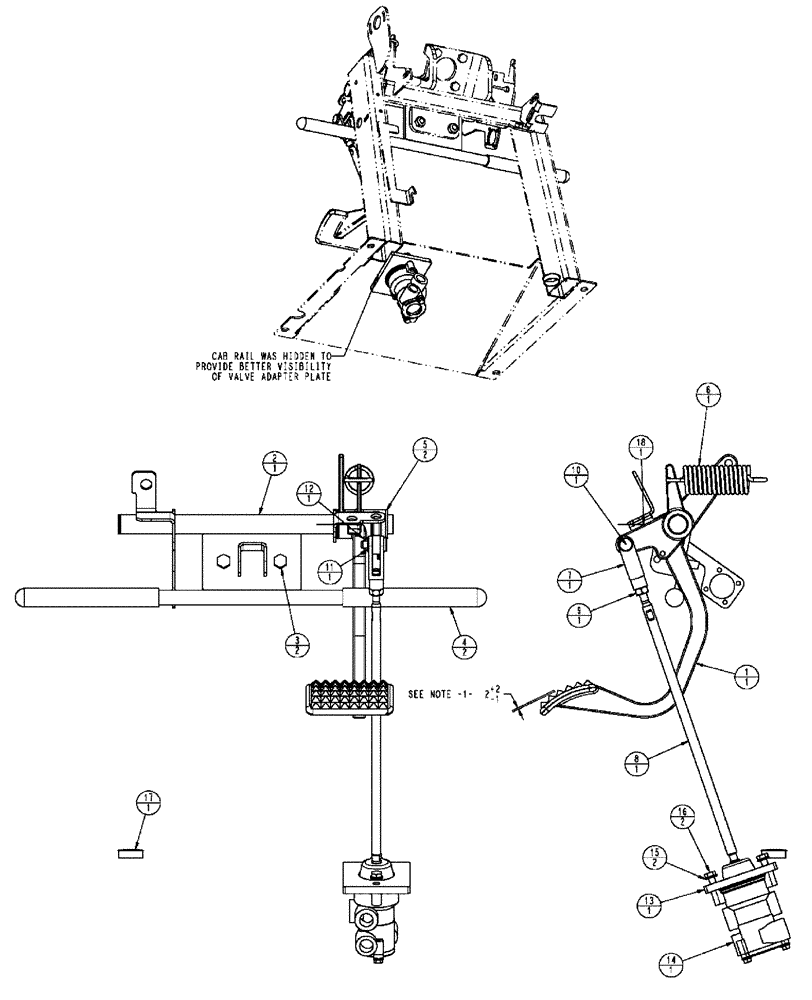

Запчасти Case IH TITAN 3520 (01-023) - BRAKE CONTROL (10) - CAB

1

222462A2

PEDAL

Control

1шт.

2

370247A3

SUPPORT

pedal

1шт.

3

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

4

321961A1

MOLDING

RUBBER

2шт.

5

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

FLAT

2шт.

6

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

EXTENSION

1шт.

7

713-1110

CLEVIS

Regular Adjustable M10 X 40

1шт.

8

416131A1

ROD

threaded

1шт.

9

86500689

NUT,M10 x 1.5, Cl 10

1шт.

10

86639108

CLEVIS PIN,10mm OD x 30mm L

1шт.

11

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

12

733-2512

COTTER PIN,M2.5 x 12

1шт.

13

416130A1

PLATE

BRAKE VALVE ADAPTER

1шт.

14

410873A1

VALVE

Service Brake

1шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

426-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 8

2шт.

17

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

18

281893A1

BEARING

PEDAL

1шт.
