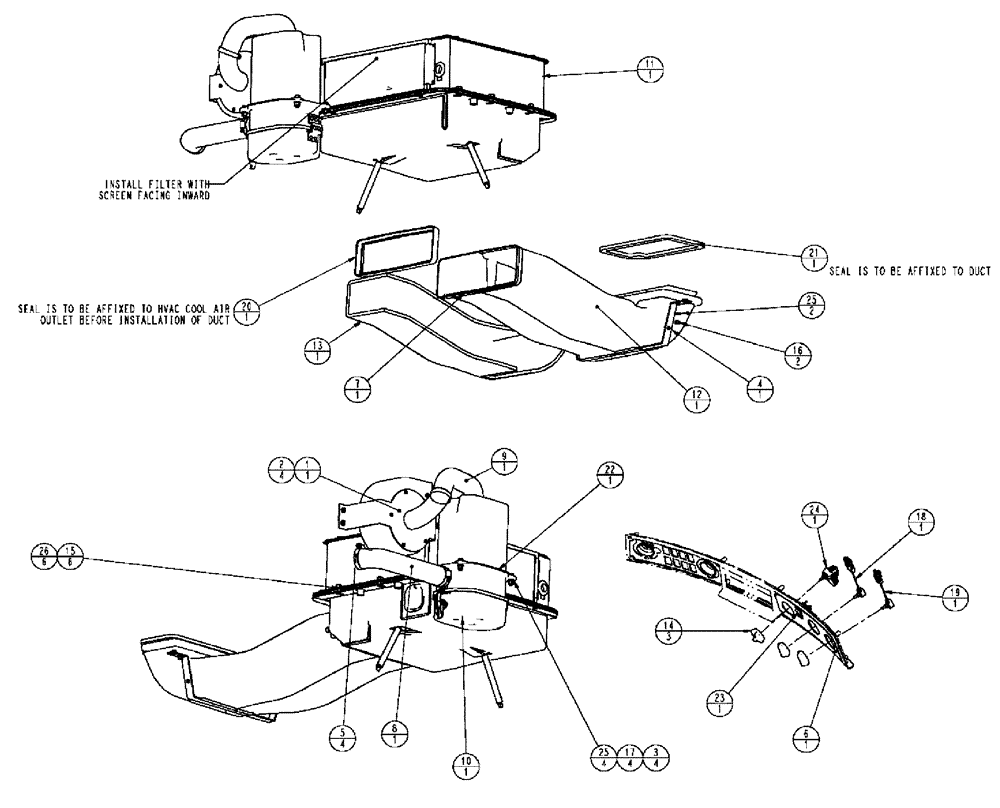

Запчасти Case IH TITAN 3520 (01-016) - HVAC CCM ASSEMBLY (10) - CAB

1

307432A3

BLOWER

assembly

1шт.

1a

307104A3

SUPPORT

blower

1шт.

Parts of Blower Assembly, P/N 307432A3

1шт.

1b

313282A1

SEAL

blower support

1шт.

Parts of Blower Assembly, P/N 307432A3

1шт.

1c

87107380

BLOWER

Cab Pressurizer

1шт.

Parts of Blower Assembly, P/N 307432A3

1шт.

1d

86639262

SCREW,M5 x 8mm

5шт.

Parts of Blower Assembly, P/N 307432A3

1шт.

2

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

3

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

4

384950A2

BRACKET

duct

1шт.

5

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

6

87450973

DECAL

STD, OVERHEAD PANEL HVAC

1шт.

7

327851A1

DUCT

HVAC

1шт.

8

87380071

HOSE,54.00 mm ID x 975.00 mm, SAE 20R4

Air Transfer

1шт.

9

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

10

87596194

HOUSING

Air Cleaner Assembly

1шт.

10a

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab, Activated Charcoal

1шт.

Associated Part of Filter, Housing, P/N 319970A2

1шт.

See Fig. 01-018

1шт.

11

87580872

AIR CONDITIONER

Standard Unit

1шт.

See Fig. 01-015

1шт.

11a

284272A3

SWITCH, A/C LOW PRES

1шт.

Associated Part of Hvac/a Std Unit, P/N 87580872

1шт.

12

328051A2

FOAM INSULATION

HVAC duct

1шт.

13

328052A2

FOAM INSULATION

HVAC duct

1шт.

14

1331046C2

KNOB

Switch Panel

3шт.

15

86500689

NUT,M10 x 1.5, Cl 10

6шт.

16

43362

NUT,M8 x 1.25, Cl 10

2шт.

17

86528579

NUT,M8 x 1.25

4шт.

18

418107A1

POTENTIOMETER,10,000 Ohm

Temperature Control

1шт.

19

345439A1

POTENTIOMETER,10,000 Ohm

Vent Motor

1шт.

20

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

foam, duct to cab floor

1шт.

21

278967A3

GASKET

seal, duct to cab floor

1шт.

22

359586A1

SEAL

filter (floor panel)

1шт.

23

87405636

SWITCH

Air Conditioning, On/Off

1шт.

24

92100C2

SWITCH

Blower Motor

1шт.

25

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

27

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.
