Запчасти Case IH TITAN 3520 (01-014) - HVAC CCM ASSEMBLY, WITH AUTO TEMP CONTROL (10) - CAB

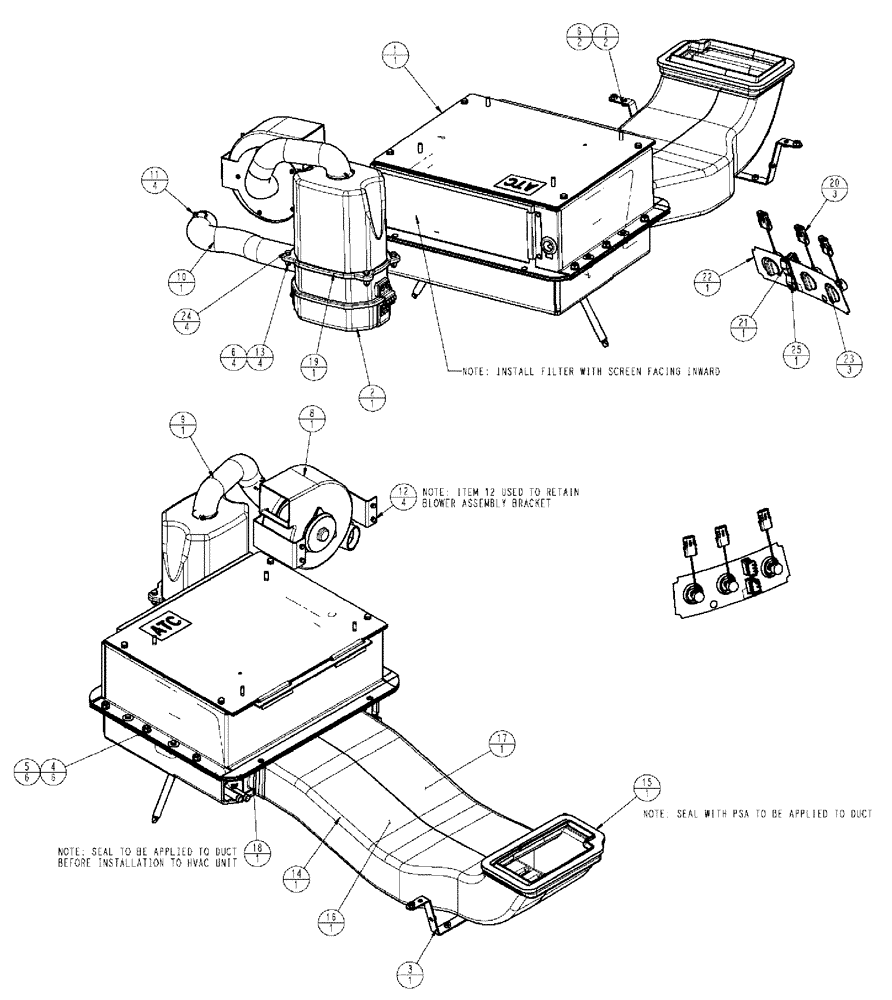

Схема запчастей Case IH TITAN 3520 - (01-014) - HVAC CCM ASSEMBLY, WITH AUTO TEMP CONTROL (10) - CAB
20
11
2
9
1
5
10
23
14
7
17
13
19
24
16
22
21
4
15
18
6
6
3
8
12
25

Артикул

Название

Примечание

Количество

1

87365878

AIR CONDITIONER

With Auto Temp Control

1шт.

See Fig. 01-015

1шт.

2

87596194

HOUSING

Air Cleaner Assembly

1шт.

See Fig. 01-019

1шт.

2a

319970A3

HOUSING

FILTER

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

384950A2

BRACKET

duct

1шт.

4

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

5

86500689

NUT,M10 x 1.5, Cl 10

6шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

7

43362

NUT,M8 x 1.25, Cl 10

2шт.

8

307432A3

BLOWER

assembly

1шт.

8a

307104A3

SUPPORT

blower

1шт.

Parts of Blower Assy, with Auto Temp Control, P/N, 307432A3

1шт.

8b

313282A1

SEAL

blower support

1шт.

Parts of Blower Assy, with Auto Temp Control, P/N, 307432A3

1шт.

8c

87107380

BLOWER

Cab Pressurizer

1шт.

Parts of Blower Assy, with Auto Temp Control, P/N, 307432A3

1шт.

8d

86639262

SCREW,M5 x 8mm

5шт.

Parts of Blower Assy, with Auto Temp Control, P/N, 307432A3

1шт.

9

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

10

307025A4

INTAKE AIR HOSE,54.00 mm ID x 390.00 mm

1шт.

11

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

12

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

13

86528579

NUT,M8 x 1.25

4шт.

14

327851A1

DUCT

HVAC

1шт.

15

278967A3

GASKET

seal, duct to cab floor

1шт.

16

328051A2

FOAM INSULATION

HVAC duct

1шт.

17

328052A2

FOAM INSULATION

HVAC duct

1шт.

18

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

foam, duct to cab floor

1шт.

19

359586A1

SEAL

filter (floor panel)

1шт.

20

418107A1

POTENTIOMETER,10,000 Ohm

Temperature Control

3шт.

21

87454558

SWITCH

Auto/Manual Climate Control

1шт.

22

87450974

DECAL

Deluxe Overhead Panel HVAC

1шт.

23

1331046C2

KNOB

Switch Panel

3шт.

24

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

25

87305994

SWITCH

Defog

1шт.
