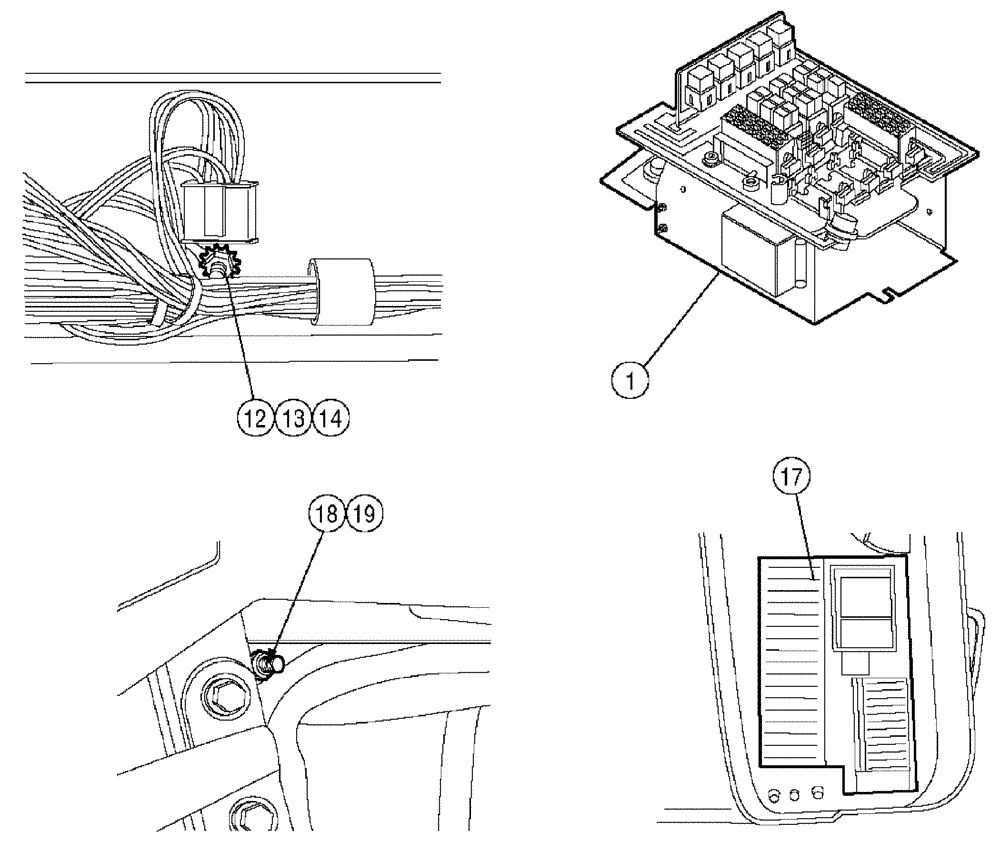

Запчасти Case IH TITAN 3520 (01-011[02]) - MAIN CAB ELECTRICAL PACKAGE (10) - CAB

1

87755455

ELECTRICAL ASSY, CAB SEE FIG. 08-004, Start Year: 01-JAN-09

1шт.

1

87342588

ELECTRICAL ASSY, CAB SEE FIG. 08-004, Years: -01-JAN-09

1шт.

2

373457A1

HARNESS

CAB ROOF

1шт.

3

87564429

HARNESS

FRONT DASH, TIER

1шт.

4

345262A1

WINDSHIELD WASHER SW

WIPER/WASHER

1шт.

5

87442098

LIGHT SWITCH

Head/Hazard

1шт.

6

177250A1

LIGHT SWITCH

Rotary

1шт.

7

1331046C2

KNOB

Switch Panel

2шт.

8

126844A1

PLUG,1.427” x .62” , Plastic

cover, switch hole

5шт.

9

227739A2

POWER SOCKET

auxiliary power

2шт.

10

383986A1

RIVET

3.3 X 11.7

20шт.

11

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

20шт.

12

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

13

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

14

86500689

NUT,M10 x 1.5, Cl 10

2шт.

15

87452321

OUTLET

Power

1шт.

16

388813A1

OUTLET

power, Casco

2шт.

17

87538890

DECAL

FUSE/RELAY

1шт.

18

87541092

SWITCH

Cab Dome Light

1шт.

19

86639312

WASHER,13.5mm ID x 20mm OD x 2mm Thk

1шт.

20

87725301

PANEL

CONTROLLER PORT

1шт.
