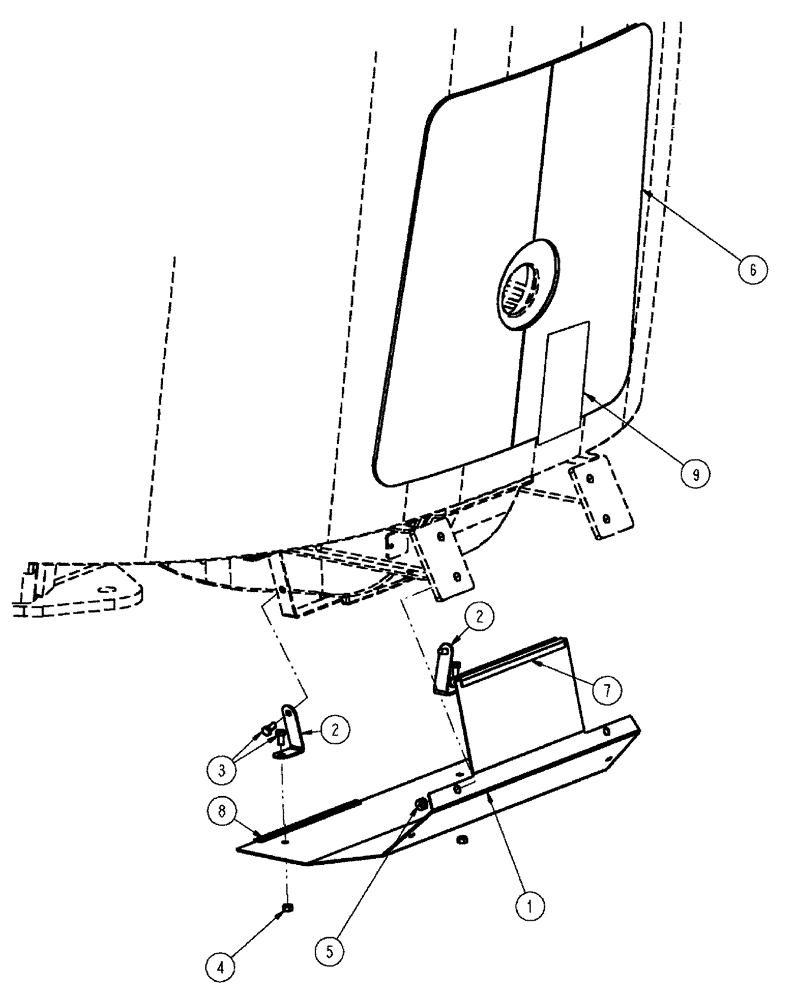

Запчасти Case IH TITAN 3520 (01-007) - HEAT SHIELD GROUP (10) - CAB

1

87266957

DEFLECTOR

Cab Skirt

1шт.

2

342423A1

BRACKET, SUPPORTING

mount, heat shield

2шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

4

86528579

NUT,M8 x 1.25

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

6

87266635

FOAM INSULATION

CAB, REFLECT

1шт.

7

87266958

RUBBER SEAL

CLIP ON, RUBBER

1шт.

8

BN303902

SOFT TRIM

EDGE, 9-3/4"

1шт.

9

87265531

TAPE

Foil, 2"

1шт.
