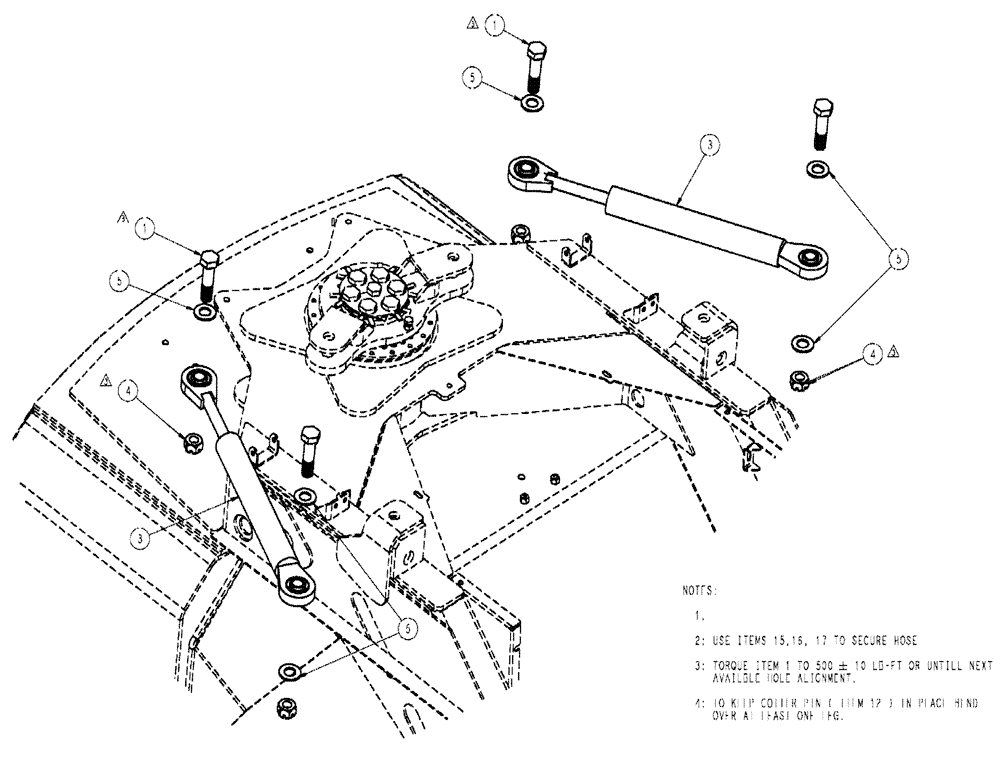

Запчасти Case IH TITAN 3520 (06-006[01]) - HYDRAULIC STEERING GROUP (07) - HYDRAULICS

1

87393916

BOLT

Steering, 1"-8, DOR

4шт.

2

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

2a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

2b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

3

344003A1

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

hydraulic, 2.00 x 12 x 1.00

2шт.

See Fig. 06-008

1шт.

4

87343900

SLOTTED NUT

Hex, 1"-8, G5

2шт.

5

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

6шт.

6

BN302536

FITTING

6MOR 6MBX 6MOR

2шт.

8

BN302650

FITTING

8 MOR-8 MB

2шт.

9

BN307804

HOSE ASSY.

2шт.

10

344284A1

HOSE

8 x 138"

1шт.

11

344394A1

HOSE

8 X 128"

1шт.

12

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

4шт.

16

353308

NUT,M6 x 1.0, Cl 8

1шт.

17

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

1шт.
