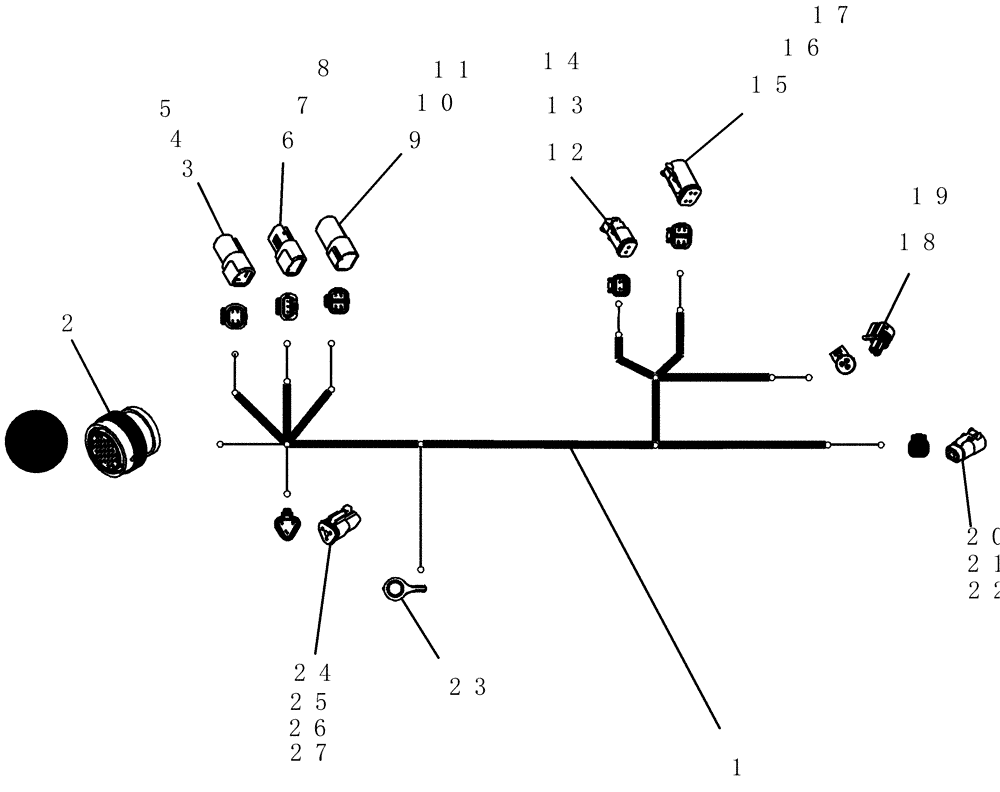

Запчасти Case IH TITAN 3520 (08-019[01 ]) - HARNESS - AUTO GUIDANCE 3 WHEEL (06) - ELECTRICAL

1

84212625

HARNESS

Auto Guidance, 3 Wheel

1шт.

2

87696949

ELEC CONNECTOR

1шт.

3

87700105

ELEC CONNECTOR

1шт.

4

87705587

ELEC CONNECTOR

1шт.

5

87698572

PLUG,20 Ga, Red

1шт.

6

84146316

ELEC CONNECTOR

1шт.

7

87696584

WEDGE

1шт.

8

87698572

PLUG,20 Ga, Red

1шт.

9

87694154

CONTACT HOUSING,Male, 4 Pole

4 Cavity Housing

1шт.

10

87694145

ELEC CONNECTOR

Wedge Lock for 4 Cavity Receptacle

1шт.

11

87695652

PLUG,12 - 16 Ga, White

1шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

1шт.

13

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, for 2 Cont. Plug

1шт.

14

87695652

PLUG,12 - 16 Ga, White

1шт.

15

87694153

CONTACT HOUSING,Female, 4 Cavities

4 Way Recepacle Housing

1шт.

16

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock For 4 Contact Plug

1шт.

17

87695652

PLUG,12 - 16 Ga, White

1шт.

18

87692837

WIRE CONNECTOR,Female, 3 Pole

3-Way Female, Metri-Pack 150

1шт.

19

87689636

PLUG,Red, Taxi Seal Connector Cavity

1шт.

20

87696138

ELEC CONNECTOR

1шт.

21

87696149

ELEC CONNECTOR

1шт.

22

87698572

PLUG,20 Ga, Red

1шт.

23

87486319

TERMINAL

1шт.

24

87695580

ELEC CONNECTOR,Female, 3 Pole

3-Way Receptacle Housing, Deutsch DT

1шт.

25

87695643

1шт.

26

87695908

ELEC CONNECTOR

1шт.

27

87695625

WIRE CONNECTOR,Locking, Green

Lock For 3 Way Receptacle

1шт.
