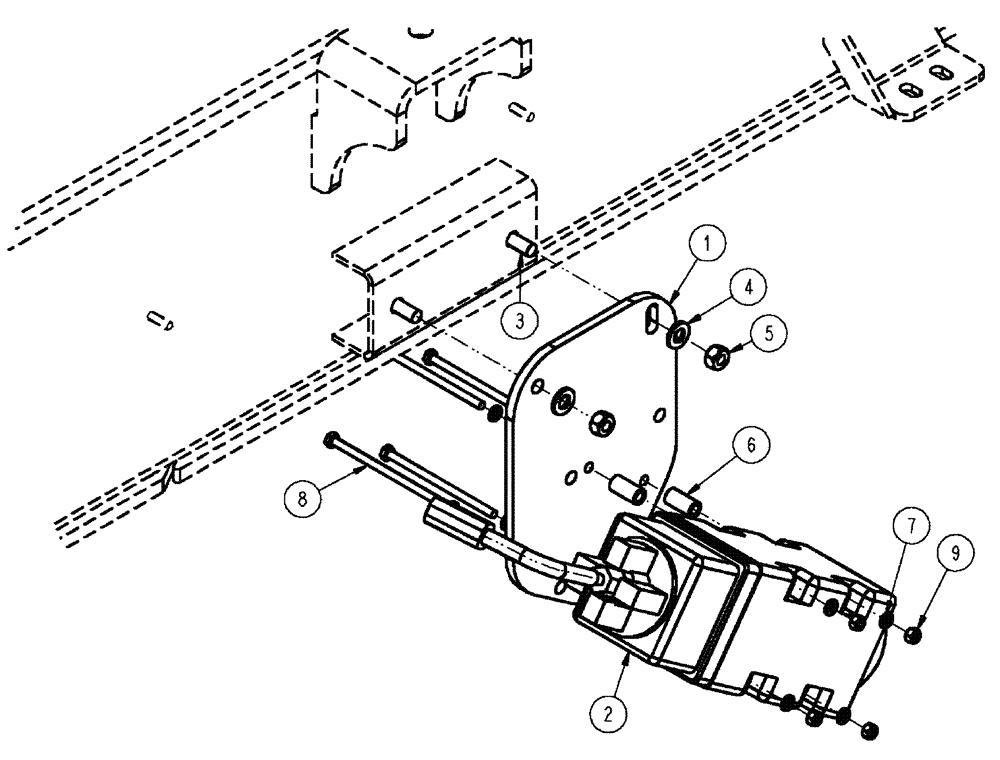

Запчасти Case IH TITAN 3520 (08-009) - SPEED SENSOR GROUP (06) - ELECTRICAL

1

BN311704

BRACKET

RADAR GUN

1шт.

2

228760A1

RADAR

sensor, true ground

1шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

6

BN311760

SPACER

RADAR, GUN MOUNT

4шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

8

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

9

353308

NUT,M6 x 1.0, Cl 8

4шт.
