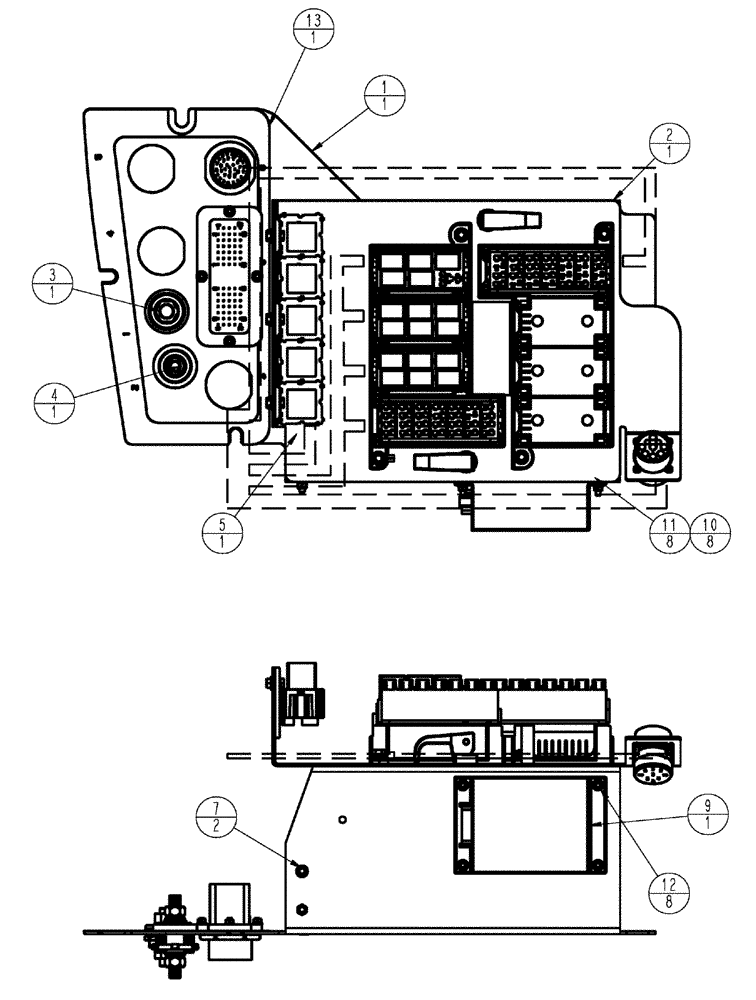

Запчасти Case IH TITAN 3520 (08-003) - MAIN ELECTRICAL ASSEMBLY (06) - ELECTRICAL

1

87335210

BRACKET

Assembly, Main Cab Floor

1шт.

2

87335489

MODULE

Cab

1шт.

Early Production W / 23 Pin Connector At BH11

1шт.

2

87719915

MODULE

4WD Main Cab Electrical, Late Production W / 16 Pin Connector At BH11

1шт.

See Fig. 08-004

1шт.

3

311430A1

BLOCK

junction assembly

1шт.

4

87109037

BLOCK

STUD

1шт.

5

20-1451T1

BLOCK

Junction

1шт.

6

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

7

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

8

87016571

NUT,M5, Cl 5

2шт.

9

84150025

MODULE

flasher interface

1шт.

10

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

8шт.

11

892-11004

LOCK WASHER,M4

8шт.

12

87016570

NUT

M4

8шт.

13

87335495

DECAL

Sprayer Main Electronics Assembly

1шт.
