Запчасти Case IH TITAN 3520 (02-060[02]) - TITAN FUEL INJECTION SYSTEM (01) - ENGINE

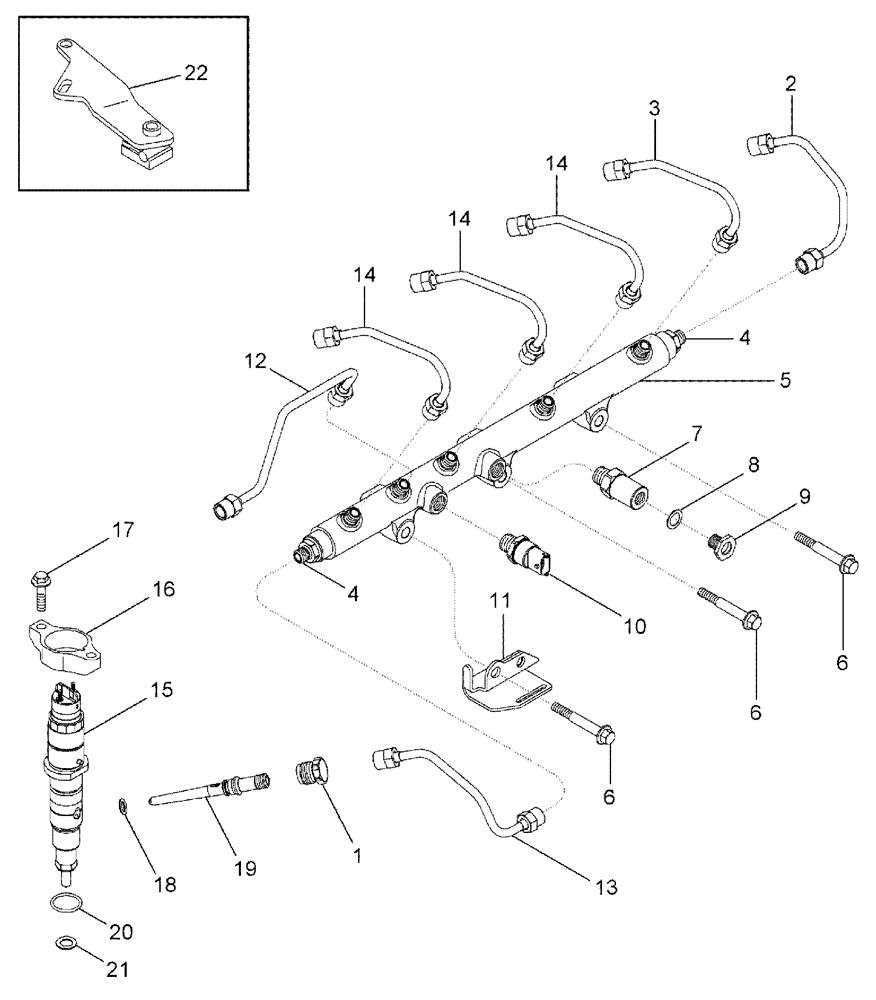

Схема запчастей Case IH TITAN 3520 - (02-060[02]) - TITAN FUEL INJECTION SYSTEM (01) - ENGINE
14
6
1
20
18
7
17
11
14
9
14
6
15
16
10
4
19
21
12
13
8
2
3
4
6
22
5

Артикул

Название

Примечание

Количество

1

87347221

RETAINER

6шт.

2

87348184

FUEL TUBE,3 mm ID x 8 mm OD x 217.70 mm L

Injector Fuel Supply

1шт.

3

87348283

FUEL TUBE,3 mm ID x 8 mm OD x 217.50 mm L

Injector Fuel Supply

1шт.

4

87348150

FITTING

High Pressure Fuel

2шт.

5

87347257

KIT

MANIFOLD

1шт.

6

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

3шт.

7

87347275

VALVE PRESSURE RELIE

1шт.

8

87348161

SEALING WASHER

1шт.

9

87348154

ADAPTER

1шт.

10

87727942

SENSOR

1шт.

11

NSS

NOT SOLD SEPARAT

BRACE, TUBE

1шт.

12

87348190

FUEL TUBE,3 mm ID x 8 mm OD x 394.10 mm L

Fuel Supply

1шт.

13

87348171

FUEL TUBE,3 mm ID x 8 mm OD x 217.60 mm L

Injector Fuel Supply

1шт.

14

87348175

TUBE,3 mm ID x 8 mm OD x 217.50 mm L

Injector Fuel Supply

3шт.

15

87538122

FUEL SYSTEM INJECTOR

6шт.

15

84346812R

REMAN-FUEL INJECTOR

Titan 3020, Titan 3520, Replaces P/N 87538122

6шт.

15

84346812C

CORE-FUEL INJECTOR

Return Number

6шт.

16

87343005

CLAMP

6шт.

17

87343006

BOLT

12шт.

18

87348322

SEAL,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

6шт.

19

87348301

FITTING

Injector Fuel Supply

6шт.

Includes Ref. 18

1шт.

20

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

SEAL

6шт.

21

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

6шт.

22

NSS

NOT SOLD SEPARAT

BRACE

1шт.

Выбрано товаров: 25
