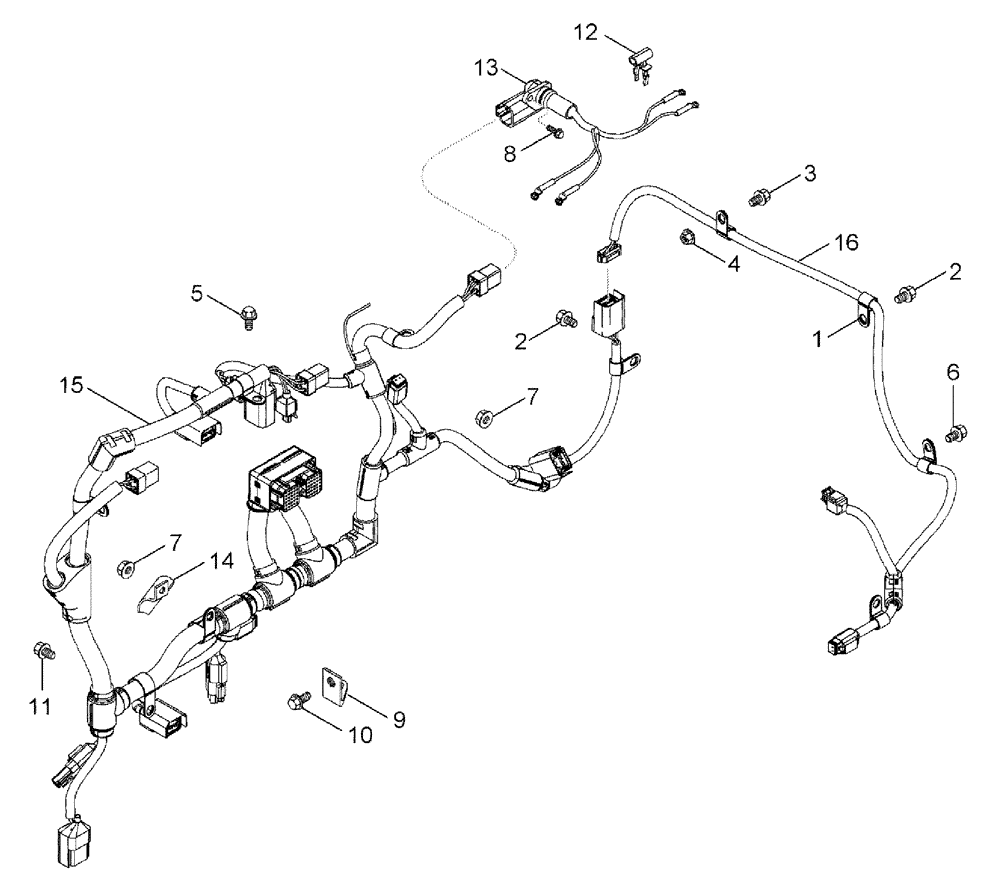

Запчасти Case IH TITAN 3520 (02-055) - HARNESS - ENGINE CONTROL MODULE (01) - ENGINE

1

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

313490A1

BOLT

M10 X 14

2шт.

3

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

6

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

Hex flange, 6 - 1.0 x 12 mm

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

8

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

3шт.

9

J919294

SUPPORT

TUBE, FUEL SUPPLY

1шт.

10

87346341

BOLT,Hex Flng, M5 x 0.8 x 12mm, Cl 10.9

1шт.

11

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 X 16, 10.9

1шт.

12

87346212

CLIP, WIRE

Retaining

8шт.

13

87346235

WIRE HARNESS

Injector Wiring

1шт.

14

87346319

BRACE

1шт.

15

87481082

WIRE HARNESS

ENGINE ECM

1шт.

16

87346339

WIRE HARNESS

TEMP SENSOR

1шт.
