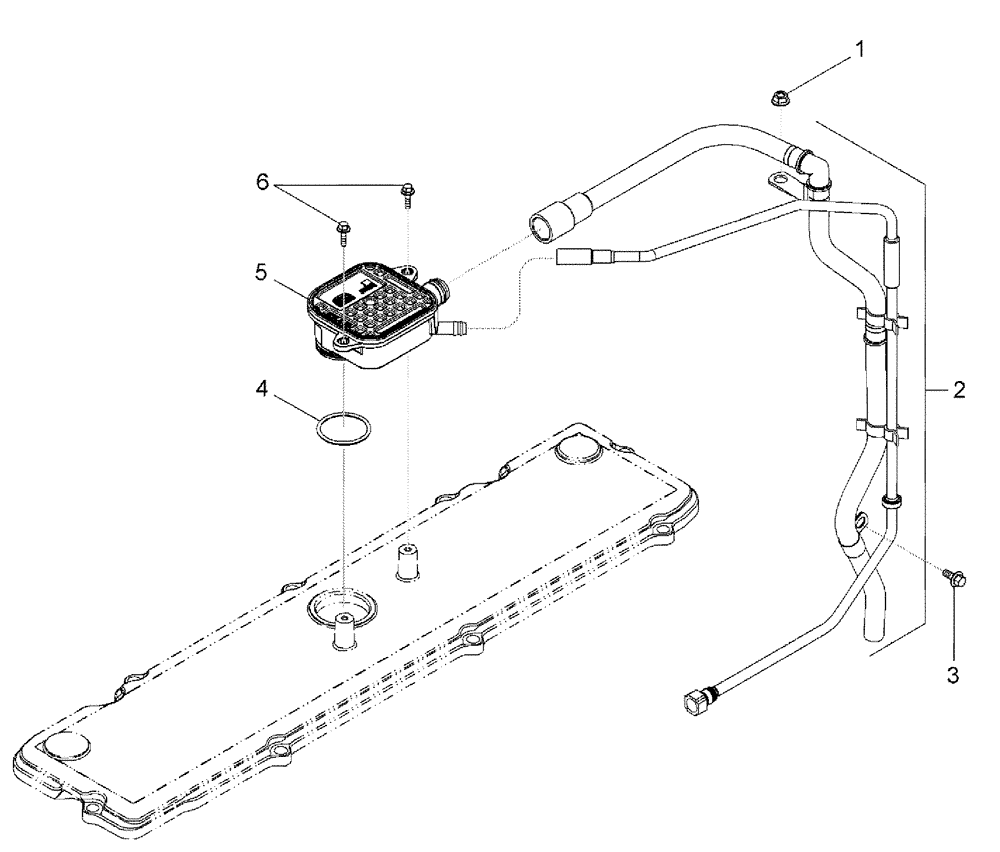

Запчасти Case IH TITAN 3520 (02-047) - CRANKCASE BREATHER (01) - ENGINE

1

J900589

NUT

M8 X 1.25

1шт.

2

87338653

TUBE

Lub Oil Drain

1шт.

3

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 X 16, 10.9

1шт.

4

87338651

O-RING,0.139" Thk x 1.859" ID, -225

Seal

1шт.

5

87338649

BREATHER

1шт.

Includes Ref. 4

1шт.

6

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.
