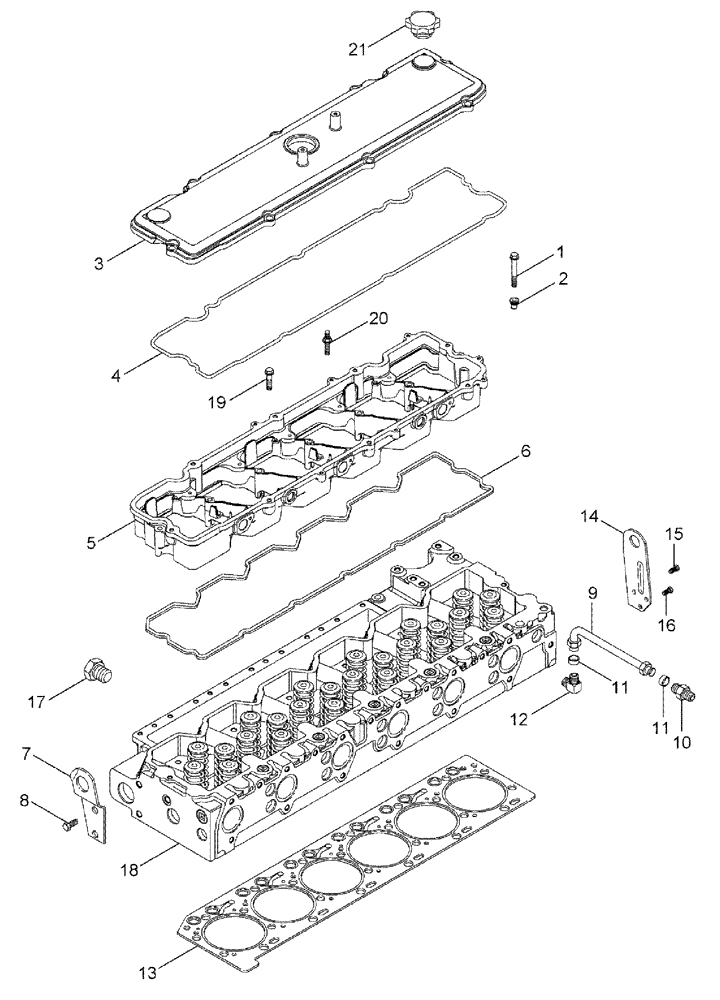

Запчасти Case IH TITAN 3520 (02-044) - CYLINDER HEAD AND COVER (01) - ENGINE

1

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

8шт.

2

87342136

ISOLATOR

8шт.

3

87345871

VALVE COVER

Assembly

1шт.

4

87345861

GASKET,3.2mm Thk

Valve Cover

1шт.

5

87344767

HOUSING

Rocker

1шт.

6

87344755

GASKET

Rocker Lever Housing

1шт.

7

87340305

LIFTING EYE

Front

1шт.

8

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

9

J924589

TUBE,6.35 mm OD x 112.6 mm L

1шт.

Includes Ref. 18

1шт.

10

87026319

HYD CONNECTOR,1/2"-24 x 1/8" NPTF w/Nut

1шт.

11

87017025

SLEEVE,5.33mm ID x 10.72mm OD x 5.41mm L

2шт.

12

87026320

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1шт.

13

87737237

CYLINDER HEAD GASKET,1.81mm Thk

Standard

1шт.

14

87340301

LIFTING EYE

Rear

1шт.

15

87015870

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

2шт.

16

87340324

BOLT

1шт.

17

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.

18

87653057

HEAD ASSY.

With Valves

1шт.

See Fig. 02-045

1шт.

18

84283167R

REMAN-CYLINDER HEAD

Titan 3020, Titan 3520, Reman For New P/N 87653057

1шт.

18

84283167C

CORE-CYLINDER HEAD

Return Part Number

1шт.

19

845-8075

BOLT,Hvy Hex, M8 x 75mm, Cl 8.8

7шт.

20

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

M8 x 35

1шт.

21

87429619

FILLER CAP

1шт.
