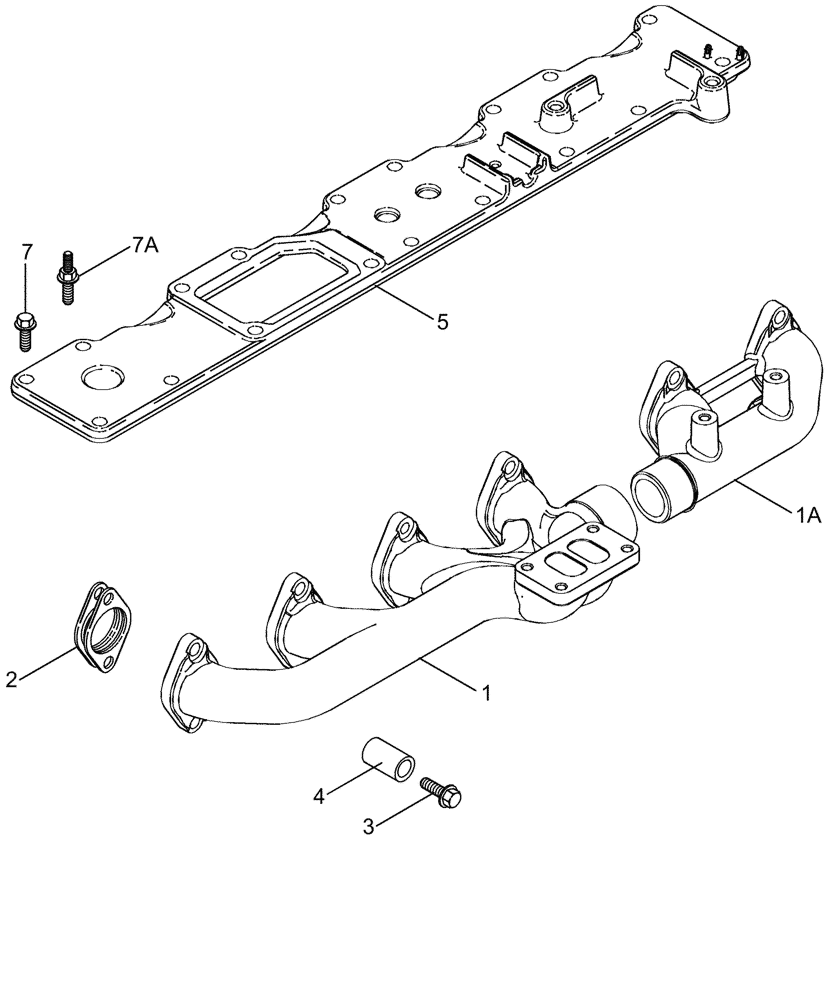

Запчасти Case IH TITAN 3520 (02-039) - MANIFOLDS (01) - ENGINE

1

87344862

EXHAUST MANIFOLD

1шт.

1a

87344861

EXHAUST MANIFOLD

1шт.

2

J937479

MANIFOLD GASKET

6шт.

3

J944593

BOLT

10 X 70 MM, EXHAUST

12шт.

4

J945252

SPACER

Mounting, 35 mm, Exhaust

12шт.

5

87340282

COVER

Intake Manifold

1шт.

7

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

18шт.

Intake

1шт.

7a

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

M8 x 35

1шт.
