(02-023[02]) - FAN SHROUD GROUP, TITAN 3520, SERIAL NUMBER YAT028759 AND AFTER

Запчасти Case IH TITAN 3520 (02-023[02]) - FAN SHROUD GROUP, TITAN 3520, SERIAL NUMBER YAT028759 AND AFTER (01) - ENGINE

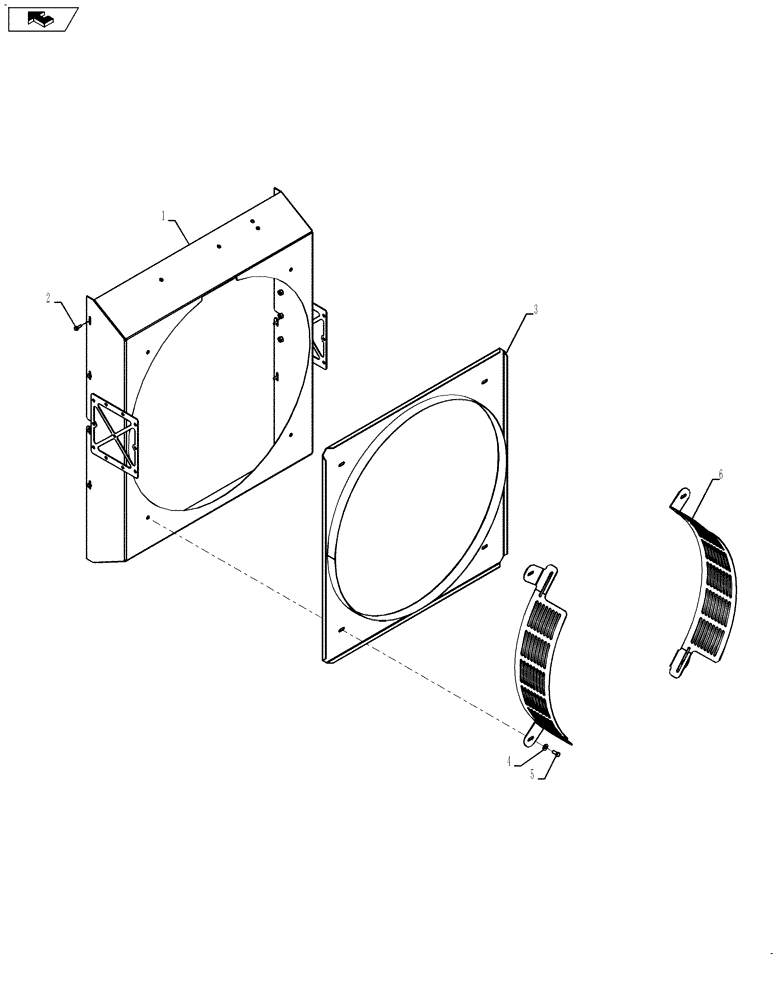

Схема запчастей Case IH TITAN 3520 - (02-023[02]) - FAN SHROUD GROUP, TITAN 3520, SERIAL NUMBER YAT028759 AND AFTER (01) - ENGINE
6
5
4
3
1
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84220886

SHROUD

Fan, 3 Wheeler

1шт.

2

87343134

SERRATED BOLT

SERRATED 1/4-20 X 3/4 5SPL DOR

8шт.

3

87267997

PLATE

Fan Guard

1шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

5

87342021

BOLT,Hex, M8 x 20mm, Cl 10.9

M8 x 20 CL 10.9 DOR

4шт.

6

87578680

GUARD

Fan

2шт.
