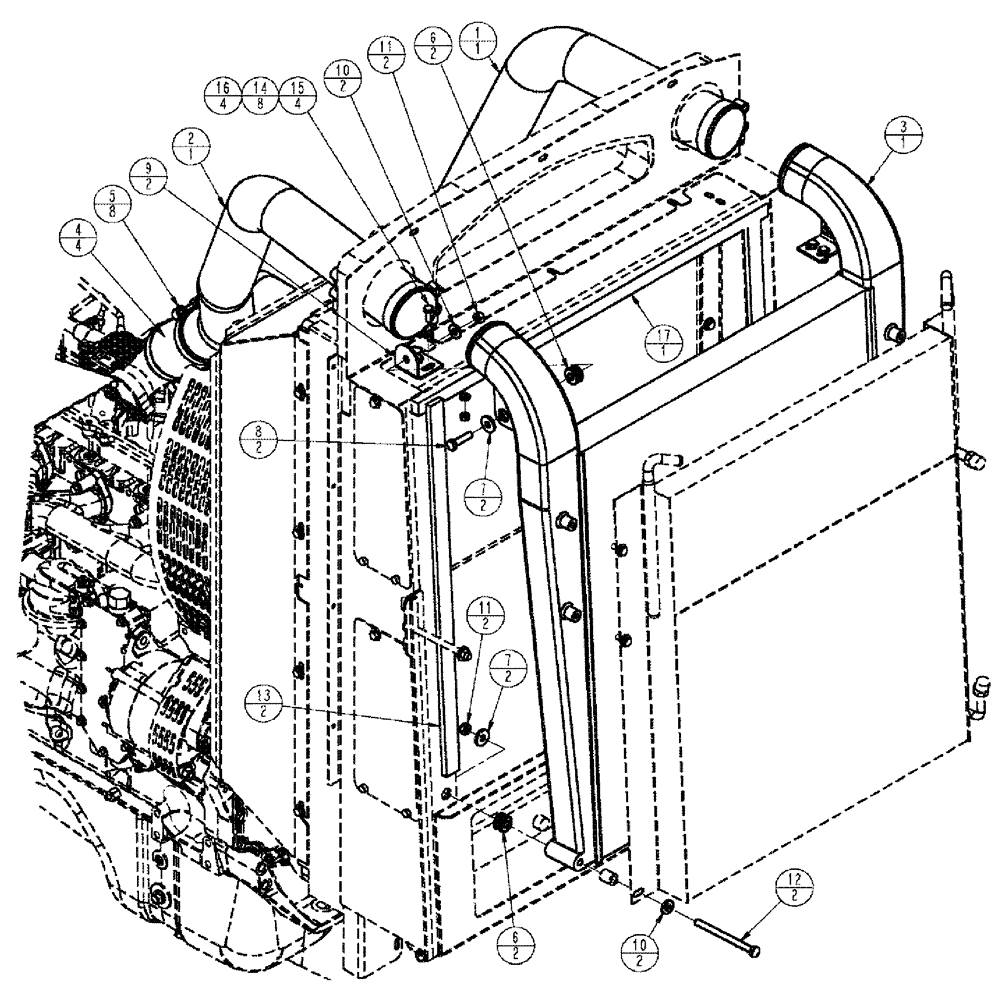

Запчасти Case IH TITAN 3520 (02-015) - CHARGE AIR SYSTEM (01) - ENGINE

1

87271499

TUBE,3.50" OD

CAC OUT

1шт.

2

87271500

TUBE,3.50" OD

CAC INLET

1шт.

3

259332A4

AFTERCOOLER

CHARGE AIR

1шт.

4

87271031

INTAKE AIR HOSE,88.90 mm ID x 152.40

4шт.

5

87270795

CLAMP

T-Bolt 3.56" Spring

8шт.

6

60-6650T1

RUBBER BUSHING

Mount

4шт.

7

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

4шт.

8

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

12

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

2шт.

13

336684A1

SEAL

foam

1шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

16

9991588

NUT,M8 x 1.25, Cl 8

4шт.

17

336686A1

SEAL

seal foam

2шт.
