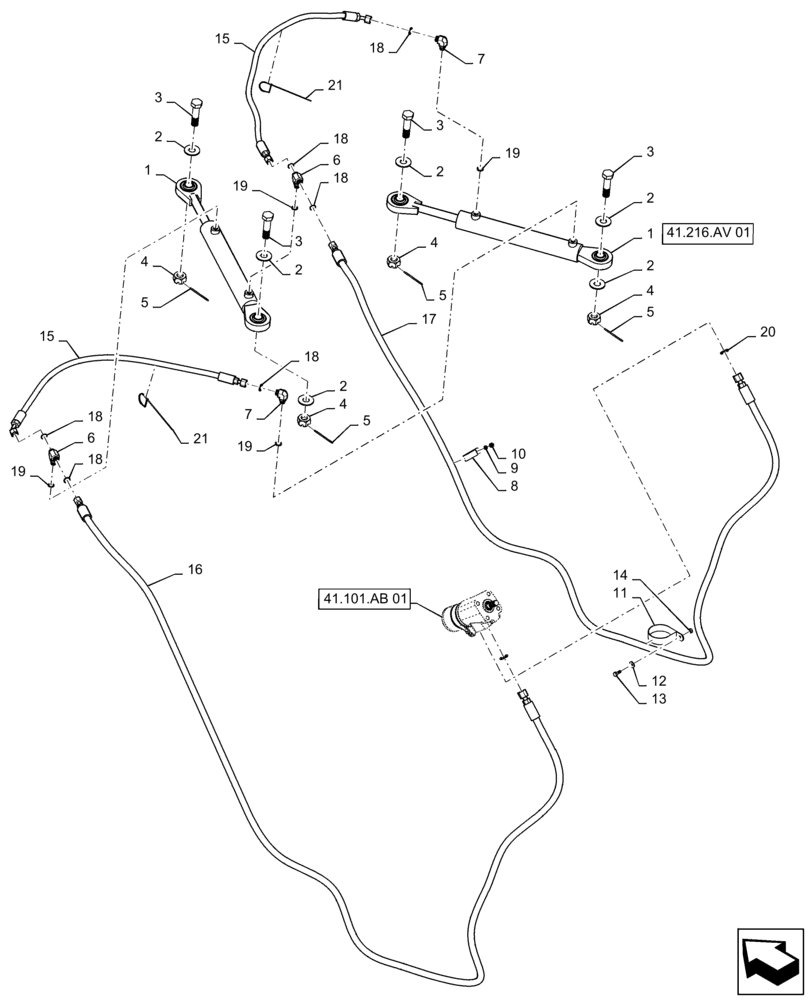

Запчасти Case IH TITAN 3040 (41.200.AO [01]) - STEERING LINES, 3 WHEEL (41) - STEERING

1

344003A1

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

Steering, 2" X 12" X 1"

2шт.

See Fig 41.216 AV 01 For Service

1шт.

2

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.062 X 2.000 X .134, HDN, DOR

6шт.

3

87393916

BOLT

Steering, 1-8 DOR

4шт.

4

87343900

SLOTTED NUT

1-8 GR 5 DOR

4шт.

5

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

4шт.

6

BN302536

FITTING

11/16-16 ORFS x 11/16-16 ORFS x 9/16-18 ORB, Incl 18, 19

2шт.

7

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 18, 19

2шт.

8

R54363

CLAMP

15/16 Double Tube

1шт.

9

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

10

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

11

87301362

CLAMP,76.2mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

12

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

13

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

15

84571365

HOSE ASSY.

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel 45° Short x 3/8" ID x 37.6" Long, LH Steering Cylinder To RH Steering Cylinder

2шт.

16

84183292

HYDRAULIC HOSE

13/16-16 ORFS Swivel x 11/16-16 ORFS Swivel x 1/2" ID x 150" Long, Steering Orbital to LH Steering Cylinder Rod End

1шт.

17

344284A1

HOSE

13/16-16 ORFS Swivel x 11/16-16 ORFS Swivel x 1/2" ID x 138" Long, Steering Orbital to LH Steering Cylinder Base End

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

21

BN570007

STRAP

Black, 14-1/2" Long

2шт.
