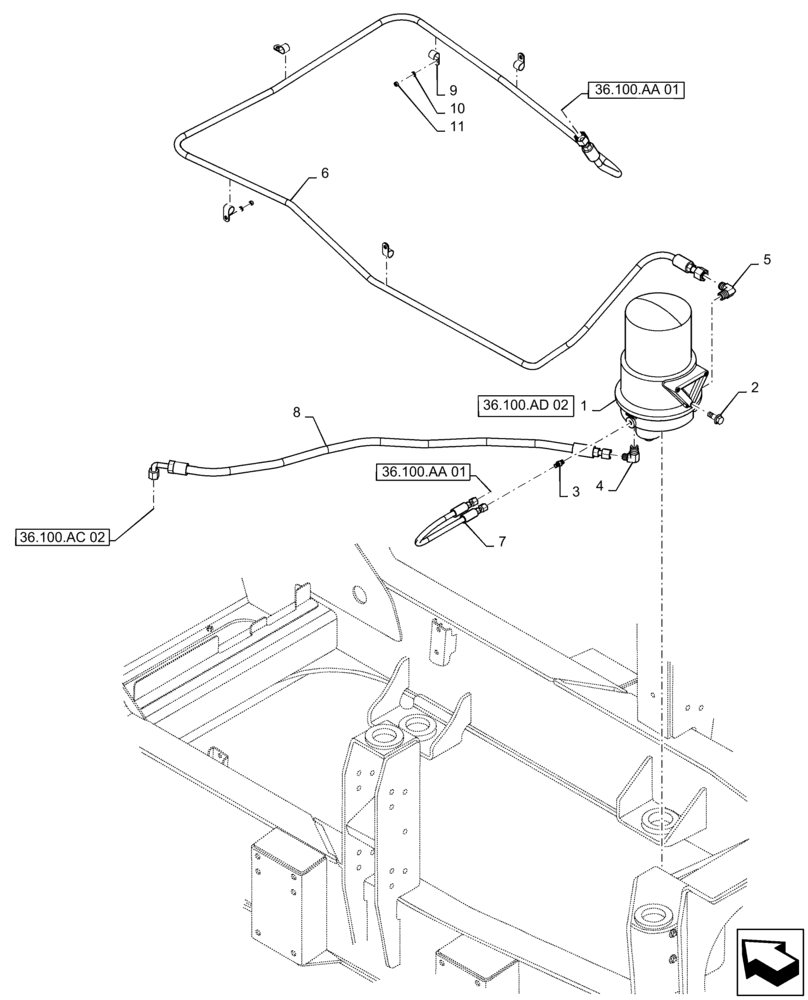

Запчасти Case IH TITAN 3040 (36.100.AD[01]) - AIR DRYER LINES AND MOUNTING, 3 WHL (36) - PNEUMATIC SYSTEM

1

87656542

DEHYDRATOR

Air Dryer Assembly

1шт.

See Fig 36.100.06 For Service Parts

1шт.

2

87343465

SERRATED BOLT

1/2" - 13 x 1-1/4", DOR

3шт.

3

BN441005

ADAPTER

7/16 - 20 JIC x 1/2" - 14 NPT

1шт.

4

BN2290508

ELBOW

1/2" NPT X 3/4" JIC

1шт.

5

BN318668

FITTING

1/2" NPT X 7/8" JIC

1шт.

6

84217790

AIR HOSE,12.50 mm ID x 4144.00 mm, SAE 100R14

7/8" - 14 JIC Swivel x 7/8" - 14 JIC Swivel, Air Compressor To Air Dryer

1шт.

7

84174466

AIR HOSE,6.30 mm ID x 458.00 mm, SAE J1402

7/16" - 20 JIC Swivel x 7/16" - 20 JIC Swivel, Air Dryer To Governor

1шт.

8

342921A1

HOSE

3/4"-16 Female JIC Swivel Elbow x 3/4" - 16 Female JIC x 1/2" ID x 60" Long, Air Dryer To Air Manifold

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

6шт.

10

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6шт.

11

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

6шт.
