Запчасти Case IH TITAN 3040 (36.100.AC[01]) - AIR TANKS (36) - PNEUMATIC SYSTEM

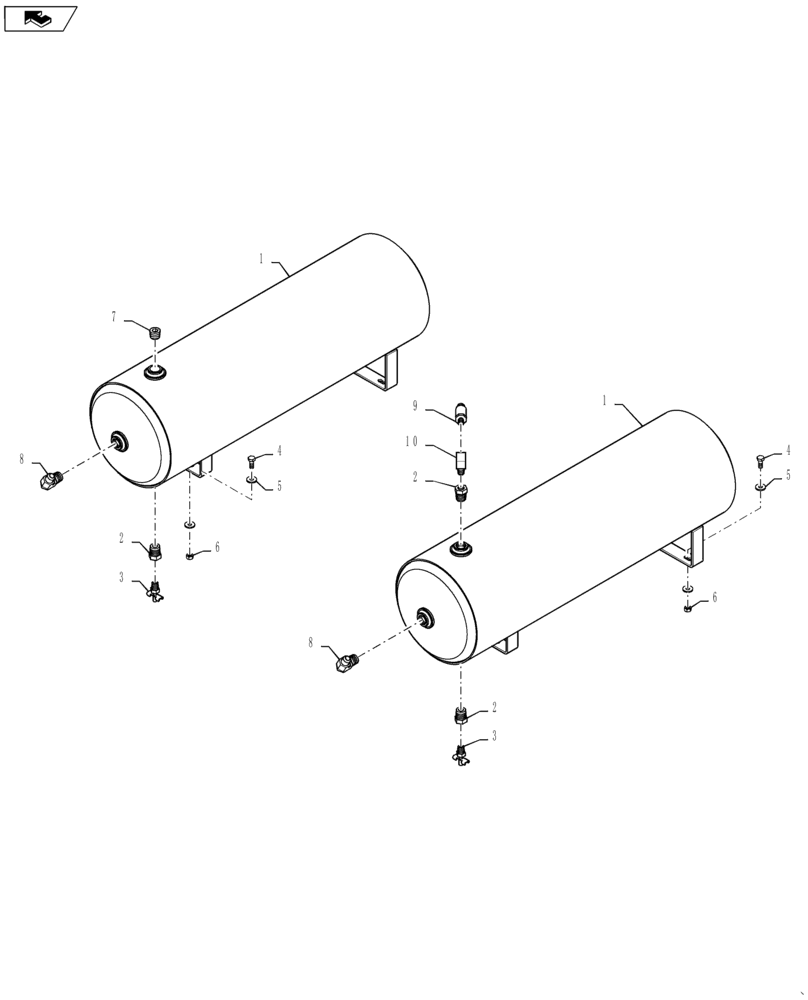

Схема запчастей Case IH TITAN 3040 - (36.100.AC[01]) - AIR TANKS (36) - PNEUMATIC SYSTEM
5
5
6
home
6
7
9
2
1
2
4
3
8
8
4
2
3
10
1

Артикул

Название

Примечание

Количество

1

86986852

TANK

Air, 240 MM

2шт.

2

BN0281508

BUSHING

1/2" NPTF Male X 1/4" NPTF Female

3шт.

3

217-92

COCK

1/4" NPTF Drain Valve

2шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

7

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

8

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

2шт.

9

87389824

SENSOR

Air Tank Pressure, 1-130 PSI

1шт.

10

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

Выбрано товаров: 10
