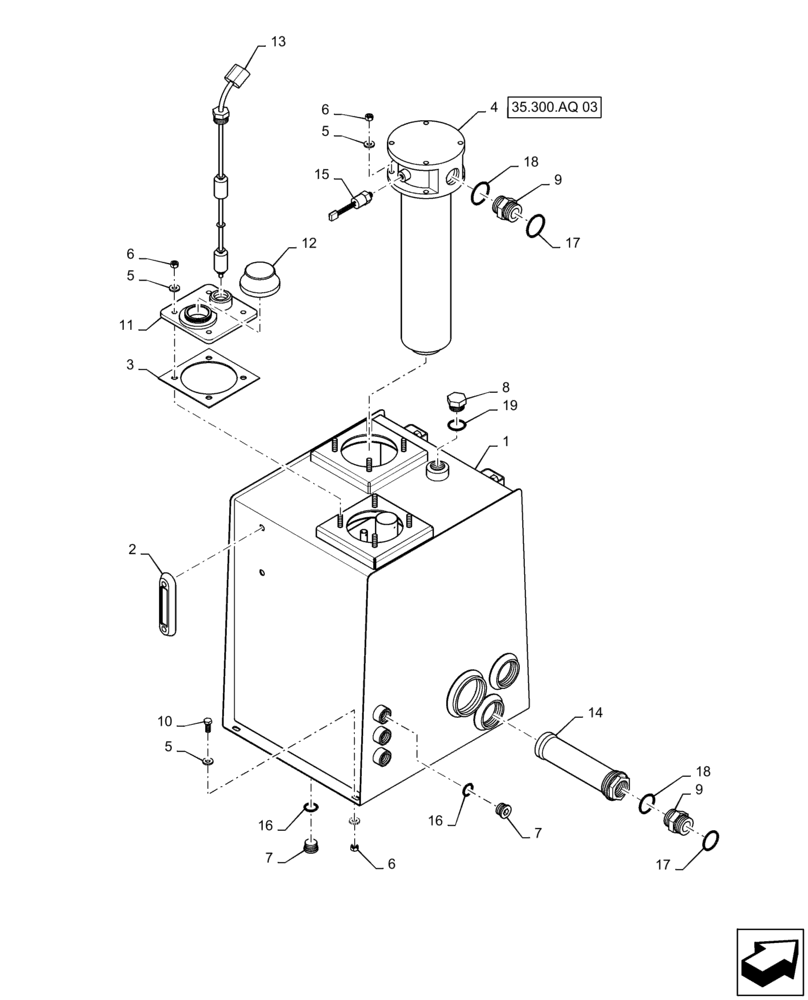

Запчасти Case IH TITAN 3040 (35.300.AQ[01]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

87270368

TANK

Hydraulic, 31 Gallon

1шт.

2

BN322594

GAUGE

Sight, W/Temperature

1шт.

3

87272095

GASKET,3.17mm Thk

Cover Plate

1шт.

4

87267809

HYDRAULIC OIL FILTER

In Tank, Flx

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

7

BN68743

PLUG

SOC HD ORB 3/4, Incl 16

2шт.

8

BN60479

PLUG

1-5/16" -12 ORB, Incl 19

1шт.

9

BN302660

FITTING

1-11/16-12 ORFS x 1-5/8-12 ORB, Incl 17 and 18

2шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

11

87272100

PLATE

Sensor Mount

1шт.

12

BN304339

VALVE

Pressure Valve

1шт.

13

84596270

SENSOR

Hydraulic Level, Temp FL

1шт.

14

BN303528

STRAINER ASSY.

32MB x 20 FB, 100 Mesh

1шт.

15

87267808

PRESSURE SWITCH

Oil Tank, 25 PSI

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

19

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
