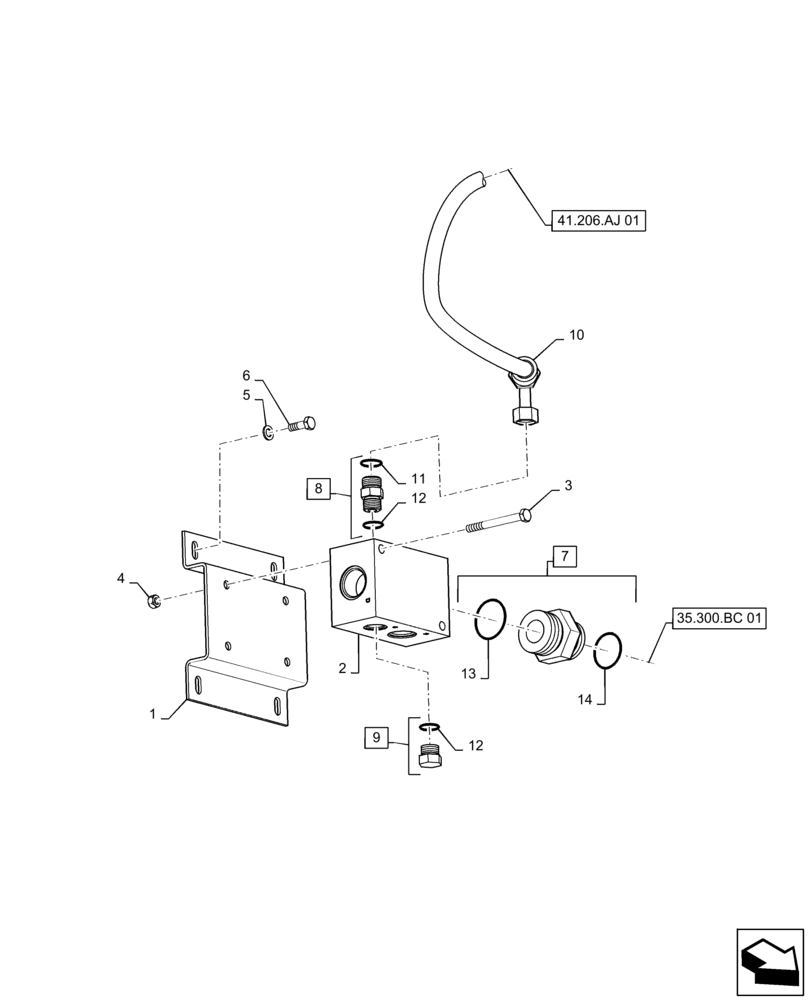

Запчасти Case IH TITAN 3040 (35.300.AB [01]) - HYDRAULIC MANIFOLD AND MOUNTING (35) - HYDRAULIC SYSTEMS

1

BN324125

BRACKET, SUPPORTING

Manifold

1шт.

2

BN302877

MANIFOLD

Oil Return

1шт.

3

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

5

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

6

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

7

BN305058

FITTING

1-11/16 - 12 ORFS x 1-7/8 - 12 ORB, ZN, Incl 13, 14

1шт.

8

BN302650

FITTING

13/16 - 16 ORFS x 3/4 - 16 ORB, ZN, Inclu 11, 12

1шт.

9

BN446025

PLUG

3/4 - 16 ORB, ZN, Incl 12

1шт.

10

84183312

HYDRAULIC HOSE

13/16 - 16 Female ORFS Swivel x 13/16 - 16 ORFS Swivel Elbow x 1/2" ID x 83" Long, Manifold to Steering Orbital

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

13

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-7/8", ORB

1шт.

14

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

1шт.
