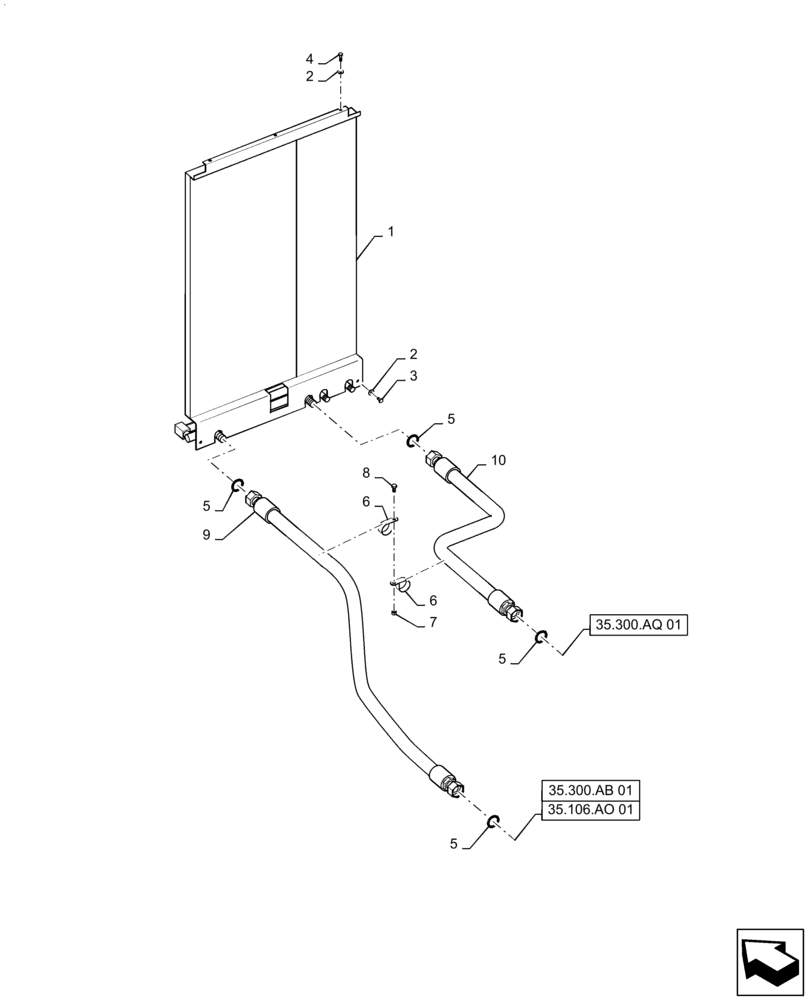

Запчасти Case IH TITAN 3040 (35.300.AB[02]) - HYDRAULIC OIL COOLER ASSY. (35) - HYDRAULIC SYSTEMS

1

BN324333

OIL COOLER

Transmission / Hydraulic Oil

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

5шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

5

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

4шт.

6

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

2шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

8

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20, 8.8, DOR

1шт.

9

87267719

HOSE

1-11/16-12 Female ORFS Swivel x 1-11/16-12 Female ORFS Swivel x 1-1/4 ID x 69" Long, Cooler To Manifold Block

1шт.

10

84183334

HYDRAULIC HOSE

1-11/16-12 Female ORFS Swivel x 1-11/16-12 Female ORFS Swivel x 1-1/4 ID x 144" Long, Cooler To Oil Tank Filter

1шт.

11

240450A2

CLAMP

Hose

1шт.
