Запчасти Case IH TITAN 3040 (33.300.AI[01]) - REAR BRAKE AIR LINES AND FITTINGS (33) - BRAKES & CONTROLS

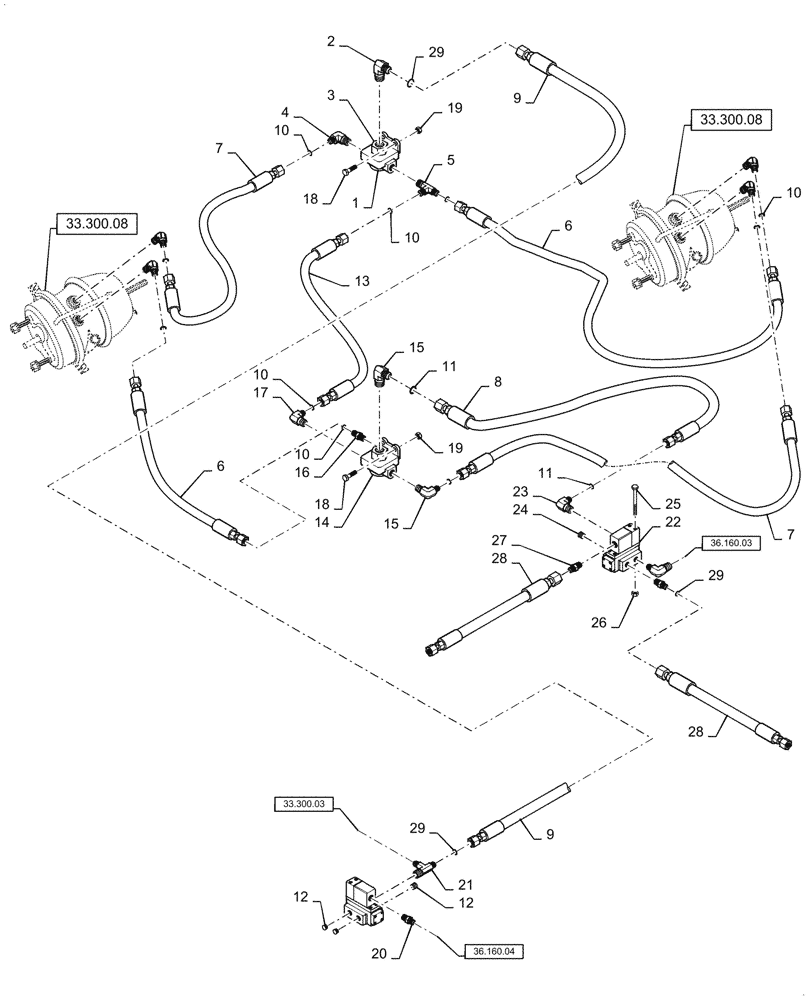

Схема запчастей Case IH TITAN 3040 - (33.300.AI[01]) - REAR BRAKE AIR LINES AND FITTINGS (33) - BRAKES & CONTROLS
36.160.03
28
2
13
29
15
10
18
12
18
27
20
10
25
26
28
10
9
21
6
3
5
17
29
24
10
29
19
7
12
10
11
8
14
1
15
11
4
6
16
22
7
23
9
19
33.300.08
33.300.08
33.300.03
36.160.04

Артикул

Название

Примечание

Количество

1

BN306847

MANIFOLD

Park Brake Quick Release, Rear Axle

1шт.

2

BN2290508

ELBOW

1/2 NPT X 3/4 JIC

1шт.

3

BN2298276

PNEUMATIC VALVE

Quick Release

1шт.

4

BN2290528

FITTING

3/8 NPT X 9/16 JIC

1шт.

5

BN2390660

FITTING

Tee, Run, 37 Flare, 3/8 Tube, 9/16 Male

1шт.

6

342926A1

HOSE

Air, 9/16-18 Female ORB Swivel X 9/16-18 ORB Swivel X 3/8" ID X 35" Long, Valve To Brake Chamber

2шт.

7

342924A1

HOSE

Air, 9/16-18 Female ORB Swivel X 9/16-18 ORB Swivel X 3/8" ID X 21" Long, Valve To Brake Chamber

2шт.

8

87272314

HOSE

Air, 7/16-20 Female ORB Swivel X 7/16-20 ORB Swivel X 1/4" ID X 12" Long, Valve To Valve

1шт.

9

342923A1

HOSE

Air, 3/4-16 Female ORB Swivel X 3/4-16 ORB Swivel X 1/2" ID X 225" Long, Valve To Valve

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

10шт.

11

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

12

BN1666161

PLUG

Allen Head 1/2

3шт.

13

342925A1

HOSE

Air, 9/16-18 Female ORB Swivel X 9/16-18 ORB Swivel X 3/8" ID X 28" Long, Valve To Valve

1шт.

14

BN2395254

PNEUMATIC VALVE

Quick Release

1шт.

15

BN2290173

FITTING

1/4 NPT X 9/16 JIC

2шт.

16

BN2290174

FITTING

3/8 NPT X 9/16 JIC

1шт.

17

BN2290506

FITTING

1/4 NPT X 7/16 JIC

1шт.

18

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

Valve Hold Down

6шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

Valve Hold Down

6шт.

20

BN2290182

FITTING

1/2 NPT X 3/4 JIC

1шт.

21

218-625

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

1шт.

22

BN301602

VALVE

Air, 12VDC, 2 Position

1шт.

22

84269276

SEAL

Pressure, Pilot Valve (Not Pictured)

1шт.

23

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

2шт.

29

BN2399401

ADAPTER

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

24

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

25

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

26

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

27

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

28

87269627

TUBE,0.25" DIA x 7.25" L

Air, 1/4 X7.25 Yellow, Exhaust

2шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

Выбрано товаров: 31
