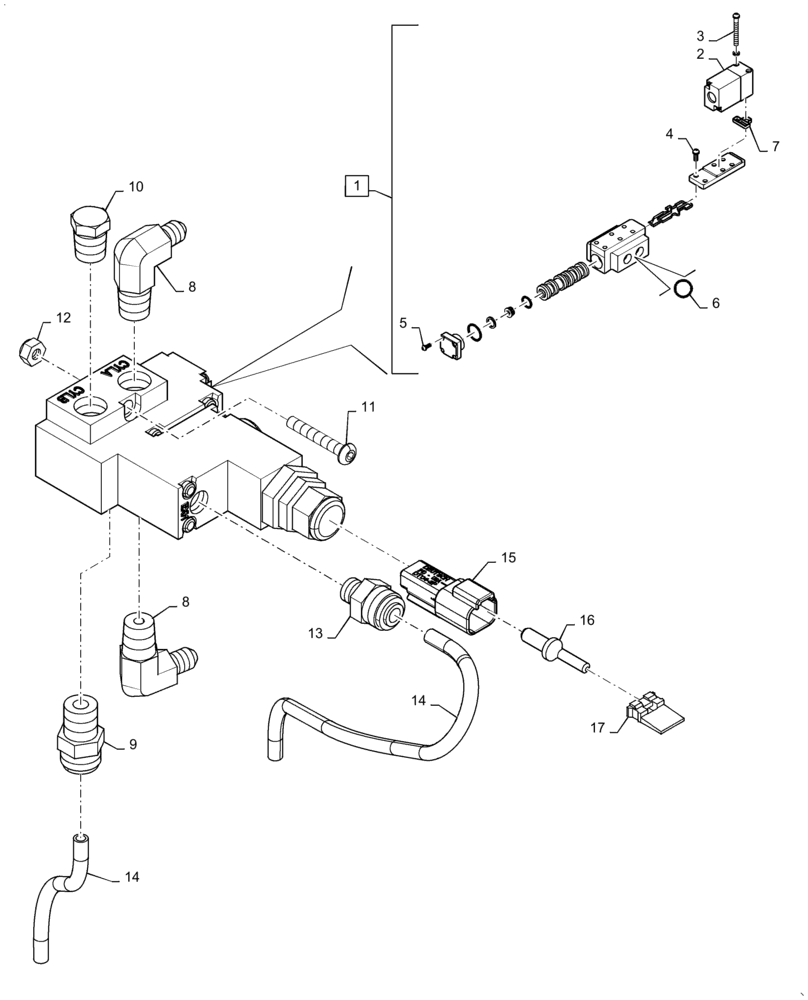

Запчасти Case IH TITAN 3040 (33.300.AE[01]) - PARK BRAKE VALVE ASSEMBLY (33) - BRAKES & CONTROLS

1

BN301602

VALVE

Air, 12VDC, 2 Position, Incl 2 - 7

1шт.

2

BN307068

COIL

Pilot Assy, Air Valve

1шт.

3

87267590

SCREW

Pilot Housing

2шт.

4

87267591

SCREW

Adaptor Plate

4шт.

5

87267592

SCREW

Retainer Mounting

4шт.

6

BN307069

SEAL KIT

Air Valve

1шт.

7

84269276

SEAL

Pressure, Pilot Valve

1шт.

8

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

2шт.

9

BN2399401

ADAPTER

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

10

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

11

BN310264

SCREW,#10 - 24 x 1 1/4", SST

2шт.

12

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

13

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

14

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

1шт.

15

87695584

CONTACT HOUSING,Male, 2 Cavities

Connector, Electric

1шт.

16

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

1шт.

17

86500166

ELEC CONNECTOR

Wedge Lock

1шт.
