Запчасти Case IH TITAN 3040 (33.204.AG[01]) - FRONT BRAKE ASSY. (33) - BRAKES & CONTROLS

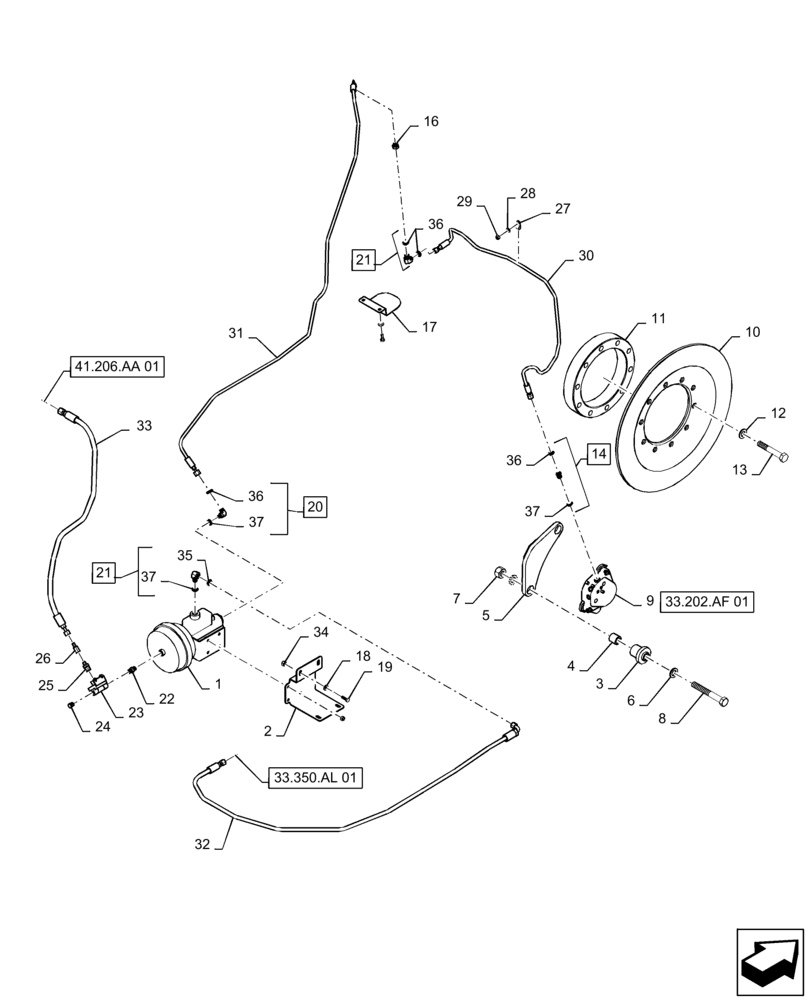

Схема запчастей Case IH TITAN 3040 - (33.204.AG[01]) - FRONT BRAKE ASSY. (33) - BRAKES & CONTROLS
32
36
36
36
6
7
21
10
37
9
26
33
30
14
3
21
13
19
35
22
20
17
16
12
27
31
24
33.350.al 01
25
8
5
4
34
18
2
37
28
33.202.af 01
41.206.aa 01
29
1
11
23
37

Артикул

Название

Примечание

Количество

1

BN324212

ACTUATOR

Air / Hydraulic

1шт.

2

84426187

MOUNT

Actuator

1шт.

3

84229470

PIN

2шт.

4

84385097

SPACER

Bushing

2шт.

5

84348068

MOUNT

Caliper Holder

1шт.

6

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

4шт.

7

87344027

LOCK NUT

M24 - 3, 10.9, DOR

2шт.

8

827-24180

BOLT,Hex, M24 x 3 x 180mm, Cl 10.9

2шт.

9

84465884

BRAKE CALIPER

Brake Disc

1шт.

10

BN301666

BRAKE DISC

27.875" Diameter

1шт.

11

84543425

SPACER

Rotor, Front Axle

1шт.

12

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

24 x 44 x 4mm, HDN, DOR

10шт.

13

87342027

BOLT,Hex, M22 x 2.5 x 140mm, Cl 10.9

10шт.

14

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Incl 36 - 37

1шт.

15

201-300

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

Incl 36

1шт.

16

87381288

BHD LOCK NUT

9/16-18, 3/8 Tube

1шт.

17

87265300

PROTECTION PLATE

Brake Hose

1шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

19

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

7шт.

20

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND, Incl 36 - 37

1шт.

21

BN302551

FITTING

11/16-16 ORFS x 7/16-20 ORB, Incl 37 - 38

1шт.

22

BN51665

FITTING

3/8" Close

1шт.

23

BN2298276

PNEUMATIC VALVE

Quick Release

1шт.

24

BN51136

PLUG

3/8-18 NPT,HH

1шт.

25

BN2293122

FITTING

Straight, 1/2 NPT X 9/16 JIC

1шт.

26

87267034

ORIFICE,9/16" - 18 Male JIC x 9/16" - 18 Female JIC, 1.91mm ID

.075, 9/16-18 Male JIC, 9/16-18 Female JIC

1шт.

27

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

5шт.

28

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

5шт.

29

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

30

84386214

HYDRAULIC HOSE

Brake, 9/16-18 Female X 9/16-18 Female Swivel X 1/4" ID X 67.8" Long, Elbow To Caliper

1шт.

31

86986060

HOSE

Brake, 9/16-18 Female Swivel X 9/16-18 Female Swivel Elbow X 1/4" ID X 97" Long, Actuator To Elbow

1шт.

32

87645589

HOSE

11/16 -16" ORFS Swivel Medium Elbow x 11/16 -16 ORFS Swivel x 3/8" ID x 90" Long, Gear Pump to Actuator

1шт.

33

84187345

HOSE

Air, 9/16-18 Female JIC Swivel X 3/4-16 Female JIC Swivel X 1/2" ID X 50" Long, Brake Pedal To Actuator

1шт.

34

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

1шт.

36

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

4шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

3шт.

Выбрано товаров: 37
