(27.126.AA [01]) - DRIVELINE MOUNTING, WITH AUXILIARY TRANSMISSION, 3040, 3540

Запчасти Case IH TITAN 3040 (27.126.AA [01]) - DRIVELINE MOUNTING, WITH AUXILIARY TRANSMISSION, 3040, 3540 (27) - REAR AXLE SYSTEM

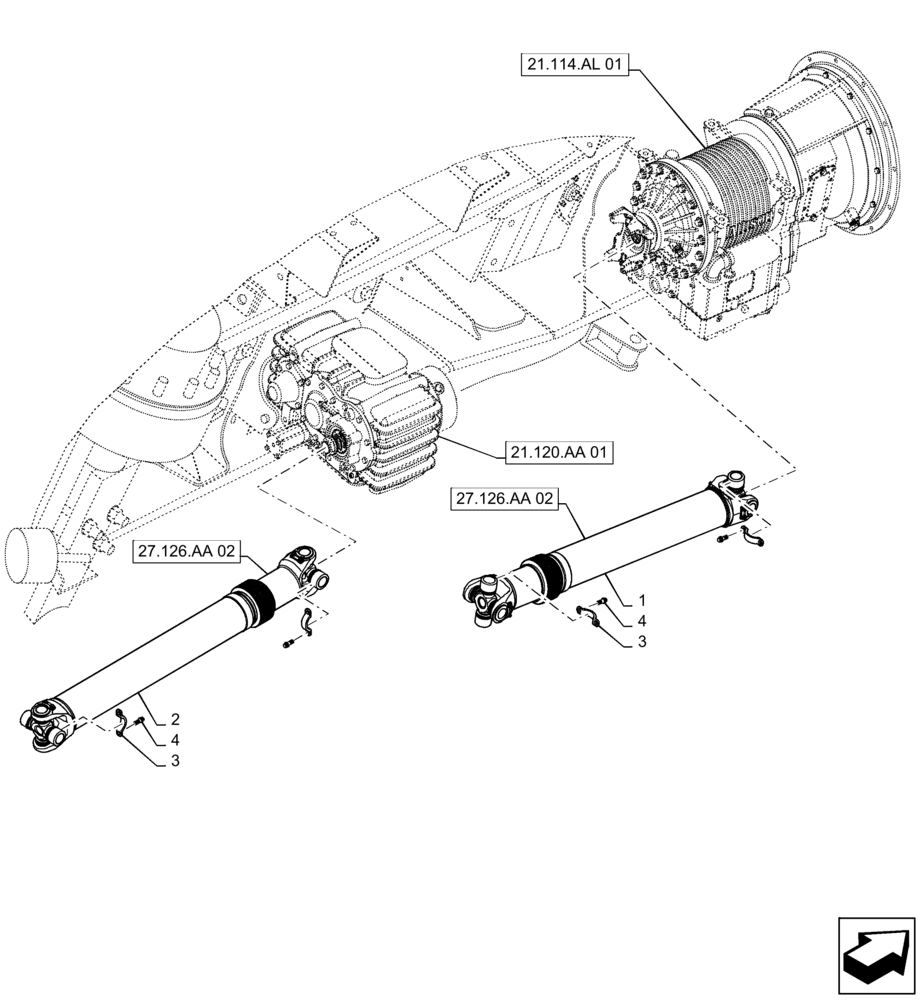

Схема запчастей Case IH TITAN 3040 - (27.126.AA [01]) - DRIVELINE MOUNTING, WITH AUXILIARY TRANSMISSION, 3040, 3540 (27) - REAR AXLE SYSTEM
4
27.126.aa 02
3
27.126.aa 02
21.120.aa 01
1
4
2
3
21.114.al 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84155081

DRIVE SHAFT

Front, Transmission To Auxiliary Transmission

1шт.

2

BN323970

DRIVE SHAFT

Rear, Auxiliary Transmission To Rear Axle

1шт.

3

BN326109

STRAP

Yoke, Drive Line

8шт.

4

BN326110

BOLT

Yoke Strap, Drive Line

16шт.

Выбрано товаров: 4
