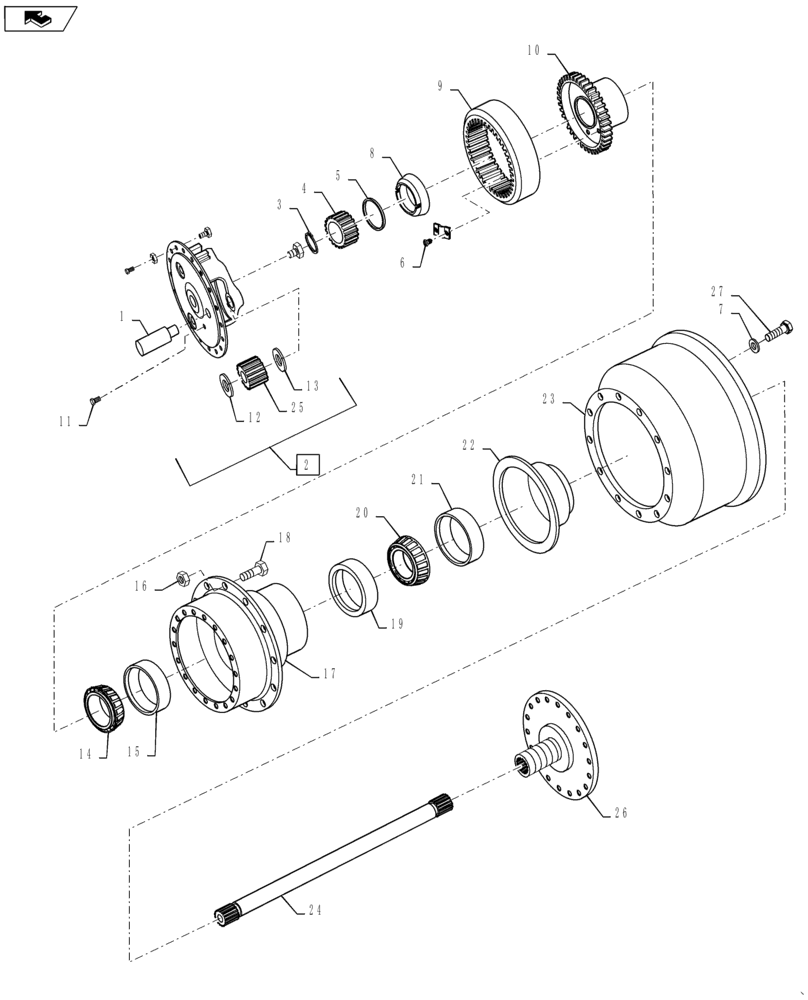

Запчасти Case IH TITAN 3040 (27.120.AI[01]) - REAR AXLE HUB (27) - REAR AXLE SYSTEM

1

BN2390129-030

SHAFT

Planetary, Pinion

6шт.

2

87266617

PINION

Planetary, Assembly 30B (2-Speed), Incl 1, 12, 13, 25

2шт.

3

BN2390129-038

SNAP RING

Axle Shaft Retaining

2шт.

4

87266618

PLANETARY GEAR

Sun 17T

2шт.

5

BN2390129-037

WASHER

Flange Tm Sun Gear

2шт.

6

87271281

SCREW

Capscrew, Wheel Bearing

2шт.

7

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

12шт.

8

87266619

BEARING LOCK NUT

Wheel Bearing

2шт.

9

87266620

PLANETARY GEAR

Ring 55T

2шт.

10

87266621

RING GEAR

Planetary

2шт.

11

BN2390129-035

PLUG

Magnetic, 3/4" NPT

2шт.

12

BN2390129-033

THRUST WASHER

Outer

6шт.

13

BN2390129-015

THRUST WASHER

Inner Pinion

6шт.

14

BN2390129-011

ROLLER BEARING,117.47mm ID x 31.75mm W

Hub Outer

2шт.

15

BN2390129-012

BEARING CUP

Hub Outer

2шт.

16

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

24шт.

17

87266628

HUB

And Cup Assembly 30 Bolt

2шт.

18

87266627

BOLT

Stud Wheel 22 mm

24шт.

19

BN2390129-014

BEARING CUP

Hub Inner

2шт.

20

BN2390129-013

ROLLER BEARING

Hub Inner

2шт.

21

BN2394941

SEAL

Oil, Wheel Bearing

2шт.

22

BN2390129-043

SLINGER

Oil

2шт.

23

BN2390129-021

BRAKE DRUM

Axle

2шт.

24

BN2390129-005

HALF SHAFT

Axle - Short x 49.83" (Curbside)

1шт.

24

BN2390129-006

HALF SHAFT

Axle - Long x 53.71" (Roadside)

2шт.

25

87266626

PLANETARY GEAR

Pinion 19T

6шт.

26

84172818

SPINDLE

Axle

2шт.

27

9635076

BOLT

Brake Drum To Hub, 3/4 - 10 X 2, GR 8

12шт.
