Запчасти Case IH TITAN 3040 (27.100.AK[02]) - REAR AXLE MOUNTING WITH AUXILIARY TRANSMISSION, 3040, 3540 (27) - REAR AXLE SYSTEM

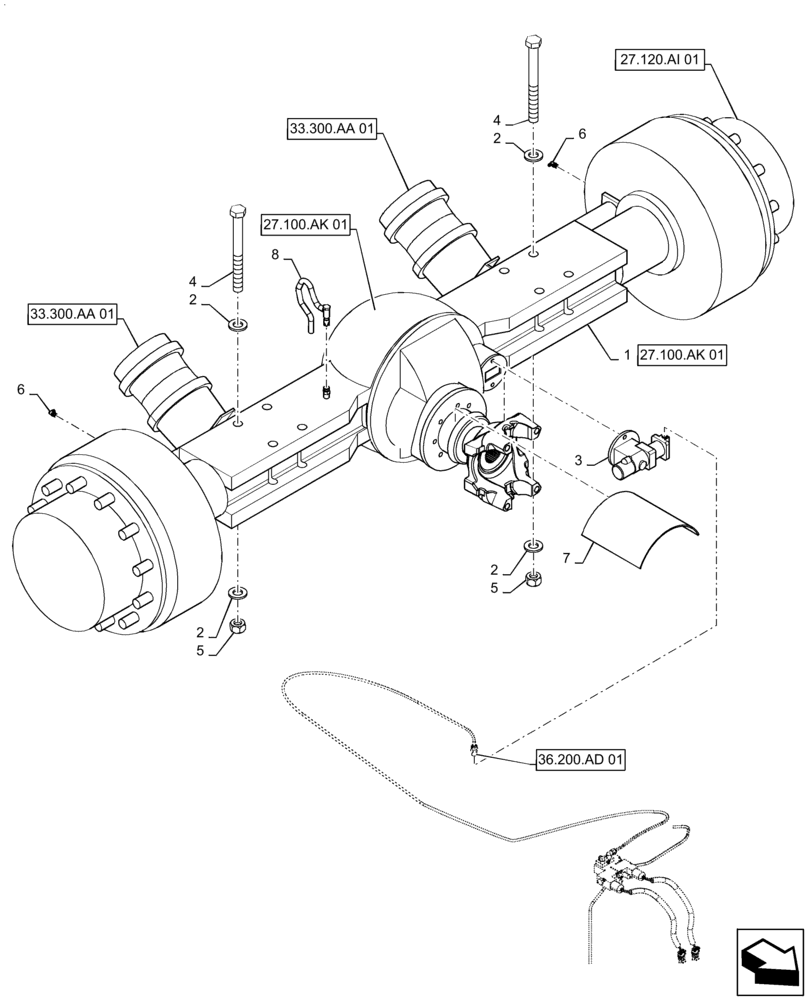

![Схема запчастей Case IH TITAN 3040 - (27.100.AK[02]) - REAR AXLE MOUNTING WITH AUXILIARY TRANSMISSION, 3040, 3540 (27) - REAR AXLE SYSTEM](https://partsell.ru/storage/images/caseih/5300121.png)
2
5
6
7
27.100.ak 01
8
4
6
2
33.300.aa 01
5
3
4
27.120.ai 01
27.100.ak 01
2
1
2
36.200.ad 01
33.300.aa 01
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
87493492
AXLE
Rear
1шт.
2
87529235
WASHER,1.06" ID x 2" OD x 0.21" Thk
1.0625 x 2 x 0.209, HTS, DOR
16шт.
3
BN2407953
SHIFTING UNIT
Rear Axle 2-Speed Pneumatic Shifter
1шт.
4
BN319750
BOLT
1 - 14 X 11, GR 8
8шт.
5
BN1470411F
LOCK NUT
NF 1-14 Flex Lock
8шт.
6
BN41288
LUBE NIPPLE
1/8-27 X 90 DEG
2шт.
7
87269589
GUARD
U-Joint
1шт.
8
47453687
BREATHER
U - Tube, FLX
1шт.
Выбрано товаров: 8
