(21.120.AA[02]) - AUXILIARY TRANSMISSION, TRANSFER BOX

Запчасти Case IH TITAN 3040 (21.120.AA[02]) - AUXILIARY TRANSMISSION, TRANSFER BOX (21) - TRANSMISSION

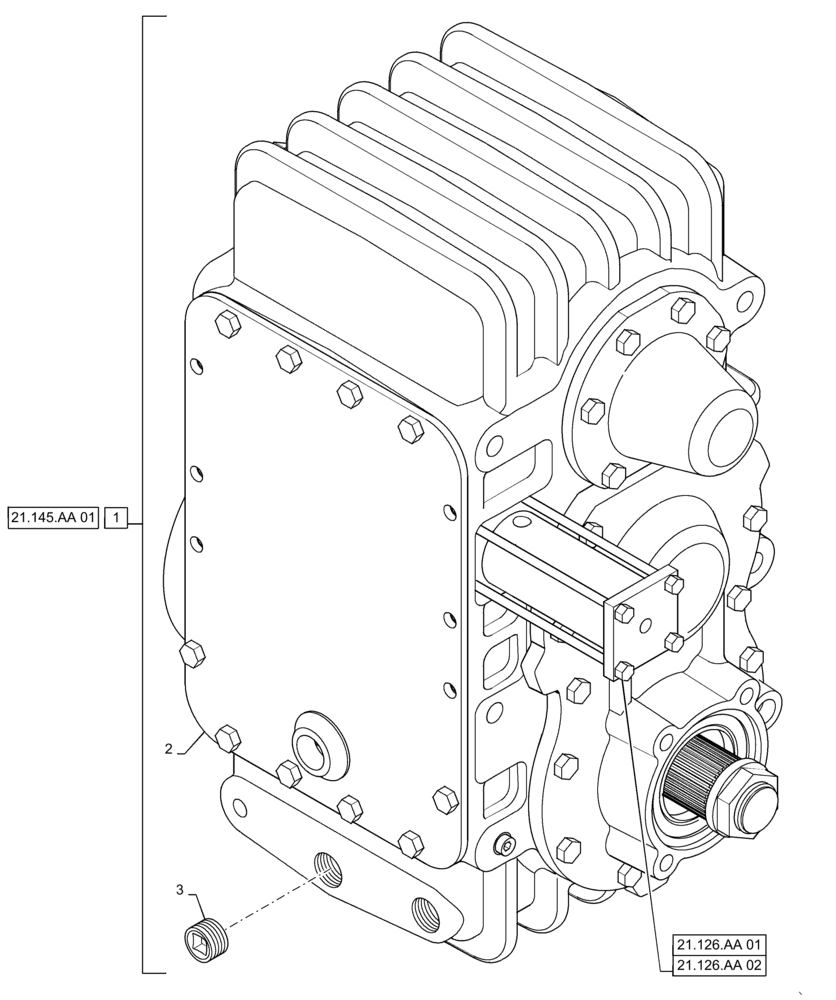

Схема запчастей Case IH TITAN 3040 - (21.120.AA[02]) - AUXILIARY TRANSMISSION, TRANSFER BOX (21) - TRANSMISSION
3
21.126.aa 01
2
1
21.145.aa 01
21.126.aa 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84420642

TRANSFER BOX

Complete, 2 Speed Auxiliary Transmission, Incl 2 - 3

1шт.

See 21.145.AA 01 For Service

1шт.

84420642R

REMAN-TRANSMISSION

Titam 3040, Titan 3540, TIER 4B

1шт.

84420642C

CORE-TRANSMISSION

Return Number

1шт.

2

87577334

GASKET

Gasket, Side Cover

1шт.

3

BN2390129-035

PLUG

Magnetic, 3/4" NPT

1шт.
