(21.114.AL[04]) - HIGH CAPACITY FILTER KIT

Запчасти Case IH TITAN 3040 (21.114.AL[04]) - HIGH CAPACITY FILTER KIT (21) - TRANSMISSION

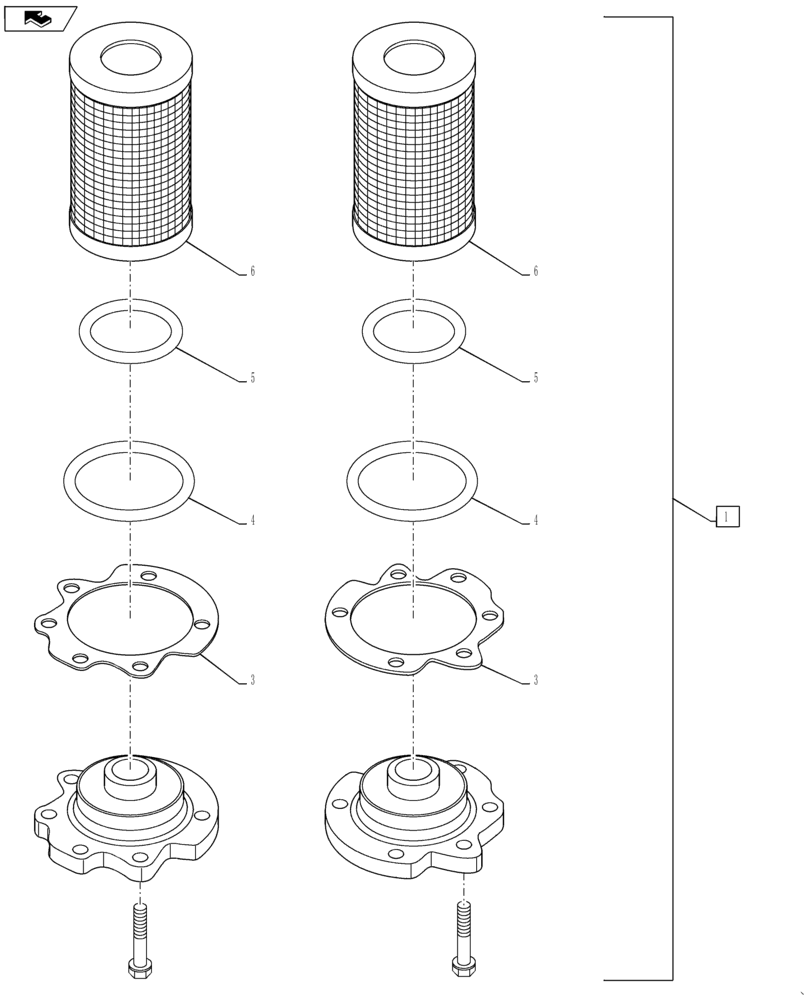

Схема запчастей Case IH TITAN 3040 - (21.114.AL[04]) - HIGH CAPACITY FILTER KIT (21) - TRANSMISSION
6
6
home
4
5
3
5
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87743577

SERVICE KIT

High Capacity Filter, Allison Transmission, Incl 2 - 6

1шт.

2

87743637

O-RING

Packing, 16.3 ID, For Transmission Drain Plug, Not Illustrated

1шт.

3

87743597

GASKET

Filter Cove

2шт.

4

84170711

O-RING

Low Temp, New Style, Round Edge

2шт.

4

87743636

O-RING,88.6mm ID

O-Ring, 88.6 ID, Old Style, Square Cut

2шт.

5

87743635

O-RING

Packing, 83.3 ID

2шт.

6

87743579

ELEMENT

Filter

2шт.

Выбрано товаров: 7
