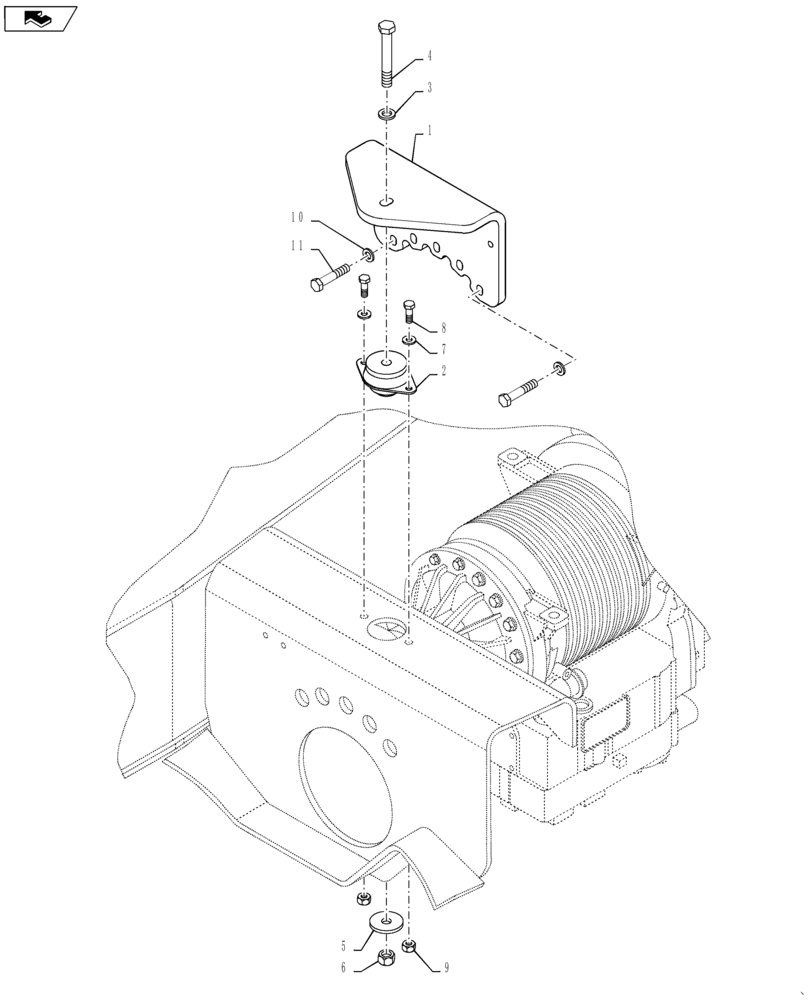

Запчасти Case IH TITAN 3040 (21.114.AL[02]) - TRANSMISSION MOUNTING, 3 WHL (21) - TRANSMISSION

1

84158775

PLATE

Transmission Hanger

1шт.

2

BN306728

ENGINE MOUNT

Transmission

1шт.

3

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

4

87341856

BOLT,Hex, M16 x 110mm, Cl 10.9

M16-2 x 110, 10.9, DOR

1шт.

5

BN308164

WASHER

Rebound

1шт.

6

87344007

LOCK NUT

M16 - 2, 10.9, DOR

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

10

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

11

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

5шт.
