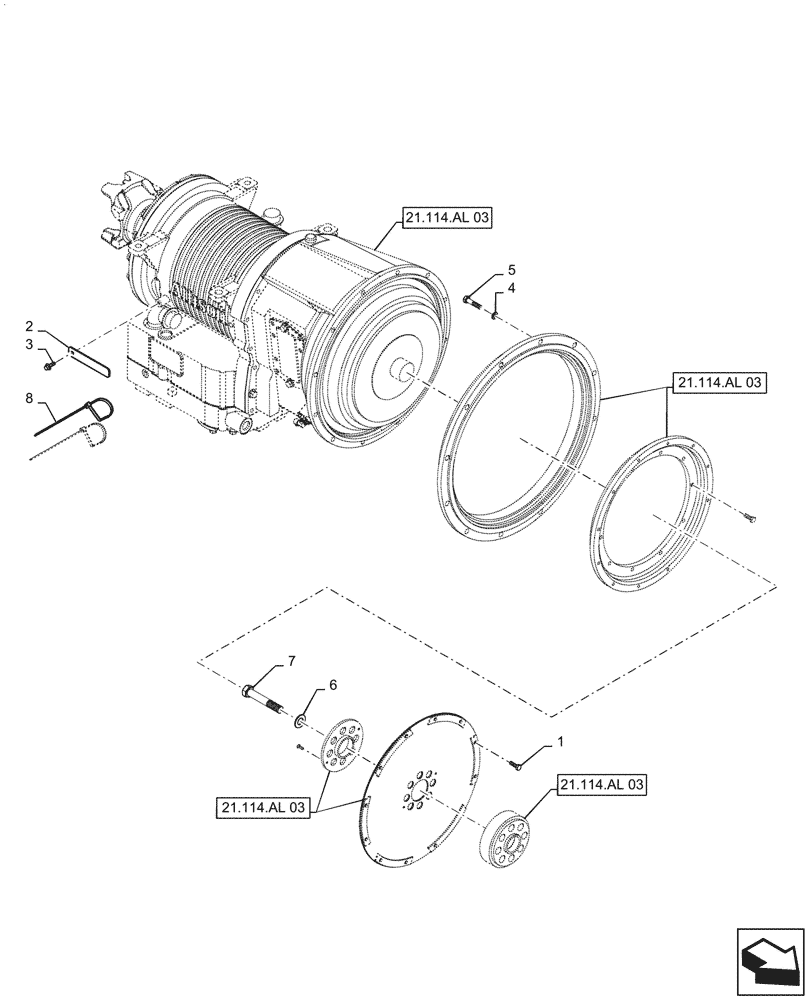

Запчасти Case IH TITAN 3040 (21.114.AL[01]) - TRANSMISSION ASSY, WITH COUPLING (21) - TRANSMISSION

1

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

2

48091774

Transmission Harness

BRACKET

1шт.

3

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

1шт.

4

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

12шт.

5

86980404

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

12шт.

6

84151586

WASHER,18.5mm ID x 35mm OD x 2mm Thk

18.5 x 35 x 2, HTS, ZND

8шт.

7

15985431

BOLT,Hex, M18 x 1.5 x 110mm, Cl 10.9

8шт.

8

BN570007

STRAP

.30 x 14.00

2шт.
