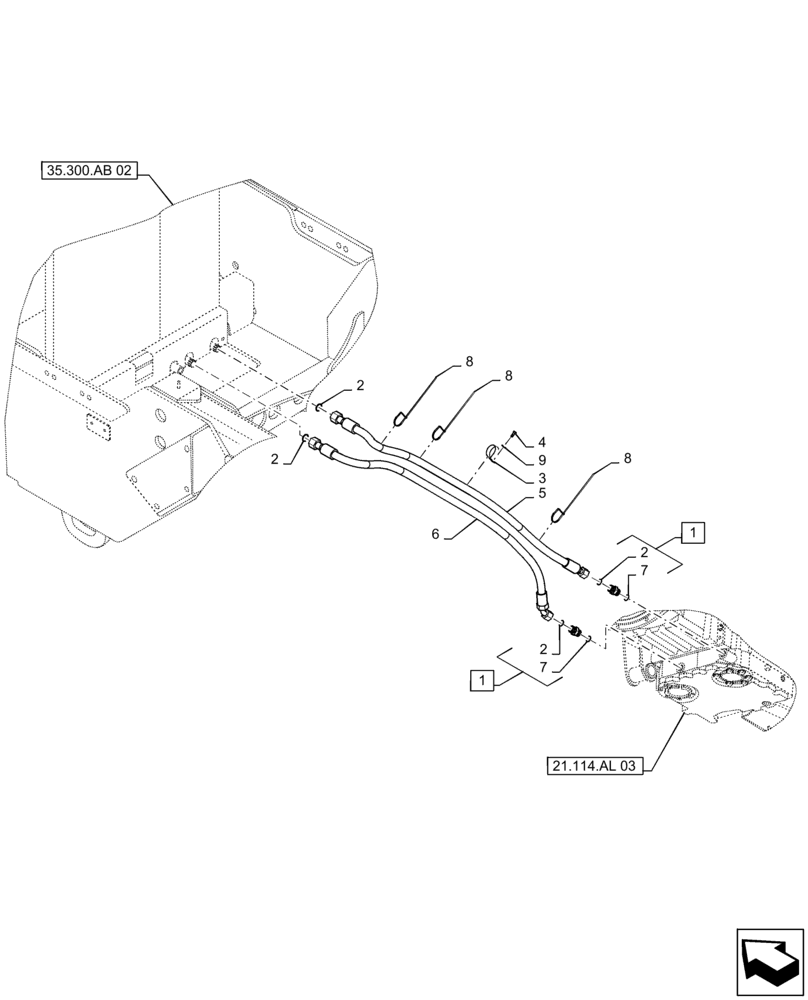

Запчасти Case IH TITAN 3040 (21.100.AD[01]) - COOLER LINES, TRANSMISSION (21) - TRANSMISSION

1

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 2 and 7

2шт.

2

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

3

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

5

342917A1

HOSE

1-3/16-12 Female ORFS Swivel x 1-3/16-12 Female ORFS Swivel x 3/4" ID x 80" Long, Cooler To Transmission

1шт.

6

342918A1

HOSE

1-3/16-12 Female ORFS Swivel x 1-3/16-12 Female ORFS Swivel 45 Elbow Short x 3/4" ID x 83" Long, Cooler To Transmission

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

8

BN570007

STRAP

Black, 14-1/2" Long

3шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.
