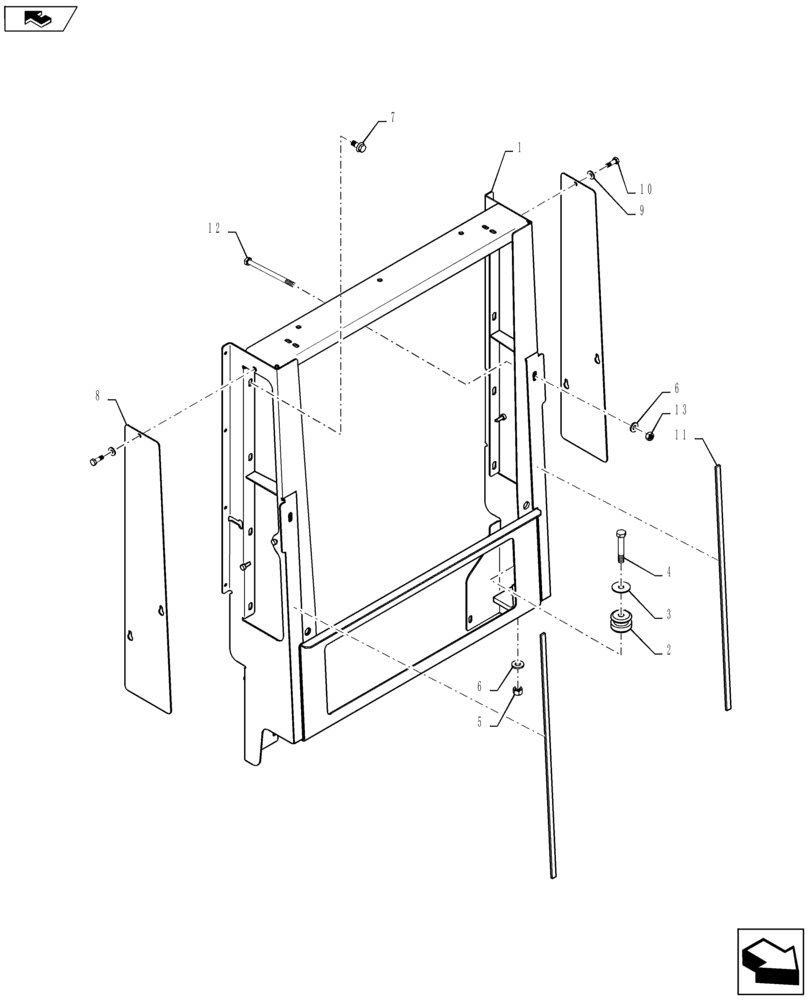

Запчасти Case IH TITAN 3040 (10.400.BF[01]) - RADIATOR MOUNTING (10) - ENGINE

1

84220880

MOUNT

Radiator

1шт.

2

47-4208

RUBBER BUSHING

Isolator

2шт.

3

87529126

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

.531 x 1.75 x 1, DOR

2шт.

4

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

7

87343449

SERRATED BOLT

3/8-16 x 3/4, DOR

10шт.

8

84220882

COVER

Radiator Clean-Out

2шт.

9

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

10

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

BN326049

FOAM

EPDM, 3/16 X 1/2, Radiator Seal, Bulk, Cut To Length

2шт.

12

86980414

BOLT,Hex, M10 - 1.5 x 140mm, Cl 8.8, DOR

2шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
