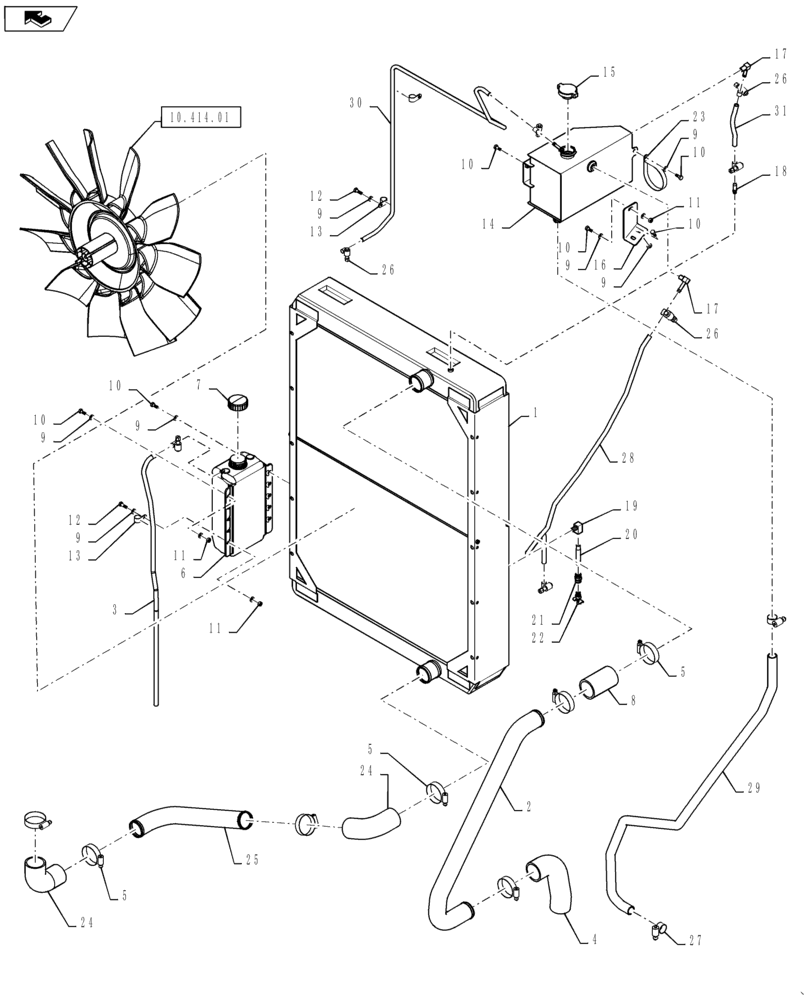

Запчасти Case IH TITAN 3040 (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE

1

84208535

RADIATOR

Engine

1шт.

2

84158766

TUBE,57 mm OD

Top Radiator

1шт.

3

BN314898

HOSE,0.31" ID x 50.00"

1шт.

4

84156734

RADIATOR HOSE,57.00 mm ID x 181,100 mm, SAE J20,SAE J20R4 CLASS D1

1шт.

5

L115548

CLAMP,57.15mm - 79.38mm

8шт.

6

87481454

BOTTLE

Tank, Coolant Recovery, 5 QT

1шт.

7

86507190

CAP

Coolant Recovery

1шт.

8

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Straight Radiator Coupling

1шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

11шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

14

84181900

TANK

Dearation

1шт.

15

A170241

RADIATOR CAP

15 PSI

1шт.

16

86986488

BRACKET, SUPPORTING

Dearation Tank

1шт.

17

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

2шт.

18

87267457

HOSE

Barbed To 1/8 Brass

1шт.

19

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

20

87266873

NIPPLE

1/4 NPTF X 3 SST

1шт.

21

217-1101

HYD CONNECTOR,1/4"-18 NPTF, Female

1шт.

22

217-92

COCK

Drain

1шт.

23

515-22889

CLAMP,3 1/2", Insul, 5/16" Bolt

1шт.

24

BN324392

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE 20R4 Class D1 per SAE J20

Lower Engine

2шт.

25

84183735

TUBE,57 mm OD x 425, 125 mm L

Bottom Radiator

1шт.

26

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

7шт.

27

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

28

87265544

FUEL HOSE,9.53 mm ID x 1244.60 mm, SAE 30R6, SAE 30R7

3/8 X 49

1шт.

29

1541952C1

HOSE,25.4mm ID x 7620mm L

Bulk, Cut To Length

1шт.

30

342658A1

HOSE

5/16 X 67

1шт.

31

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

3/8", Fuel Line, Bulk, Cut to Length

1шт.

32

BN570007

STRAP

14"

2шт.
