Запчасти Case IH TITAN 3040 (10.304.AP[01]) - REMOTE CRANKCASE VENTILATION FILTER ASSY (10) - ENGINE

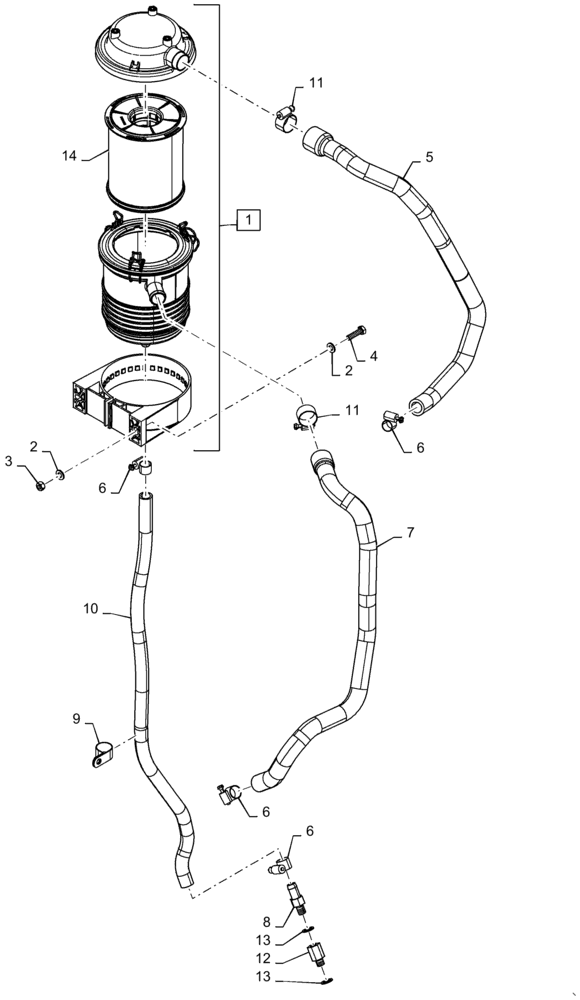

Схема запчастей Case IH TITAN 3040 - (10.304.AP[01]) - REMOTE CRANKCASE VENTILATION FILTER ASSY (10) - ENGINE
2
1
9
10
2
6
5
13
6
12
6
4
11
11
8
13
14
3
7
6

Артикул

Название

Примечание

Количество

1

84326459

FILTER ASSY

Remote CCV, Complete, Incl 14

1шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

4

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

5

84475555

HOSE

CCV To Air Filter

1шт.

6

87487836

CLAMP,0.56" - 1.06"

# 10, SST

4шт.

7

84475554

HOSE

Engine To CCV

1шт.

8

84326458

CHECK VALVE

CCV

1шт.

9

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

10

87267877

HOSE

Bulk, 5/8" ID

1шт.

11

87487830

CLAMP,0.81" - 1.75"

# 20, SST, W / Liner

2шт.

12

84475560

FITTING

M12 x 1.25 - M12 x 1.75, Brass

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

14

84376809

ELEMENT

Remote CCV, Incl 1

1шт.

Выбрано товаров: 14
