Запчасти Case IH TITAN 3040 (10.254.AI[01]) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE

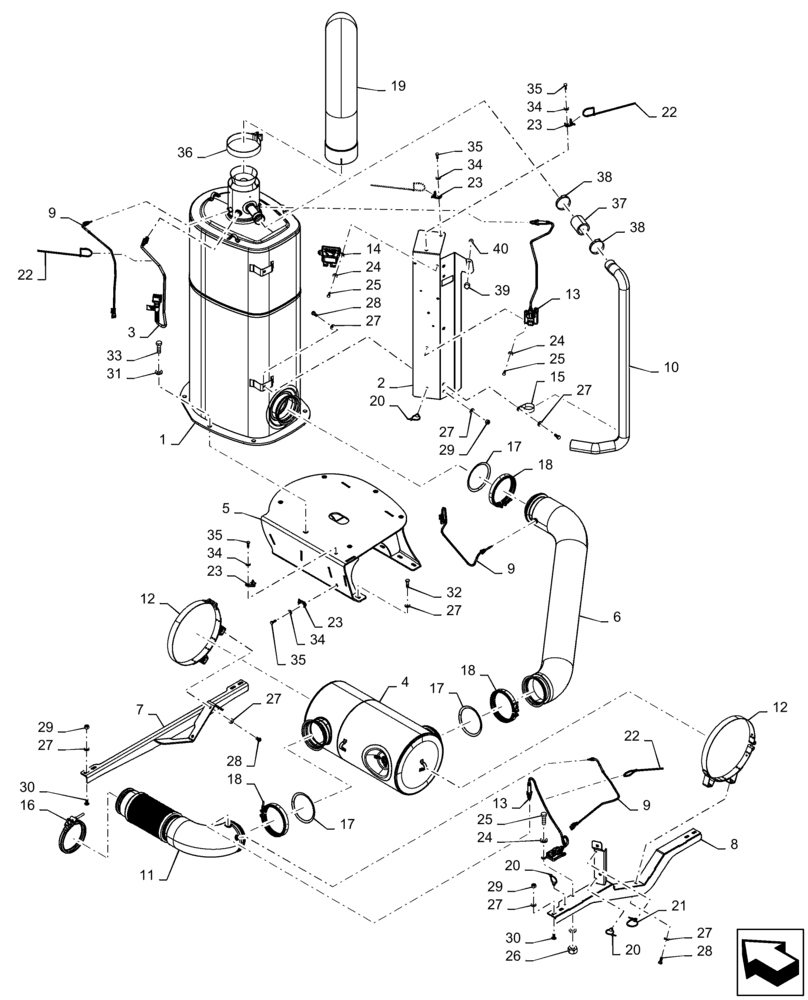

Схема запчастей Case IH TITAN 3040 - (10.254.AI[01]) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE
32
34
34
20
34
15
23
36
29
2
35
30
35
17
27
17
4
3
40
27
22
35
14
38
13
23
24
6
10
27
23
27
22
28
19
12
24
34
9
28
18
27
20
5
37
1
31
27
25
22
25
20
8
35
17
39
7
25
28
27
26
29
18
9
30
21
38
18
27
33
13
12
11
23
9
29
16
24

Артикул

Название

Примечание

Количество

1

47608953

MUFFLER

SCR

1шт.

2

48088892

NOX Sensor

MOUNT

1шт.

3

47520142

SENSOR,1000mm L

NH3

1шт.

4

47608954

MUFFLER

DOC

1шт.

5

47533270

MOUNT

SCR

1шт.

6

47396817

EXHAUST SYSTEM PIPE

Lined

1шт.

7

47426009

MOUNT

DOC

1шт.

8

47426025

MOUNT

DOC

1шт.

9

47478880

TEMPERATURE SENDER,50mm, Closed

Temperature

3шт.

10

47437130

TUBE

Precleaner

1шт.

11

47431079

EXHAUST SYSTEM PIPE

Turbo

1шт.

12

47439305

CLAMP,328mm ID

DOC

2шт.

13

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX, 12V

2шт.

14

47368959

ECU

NH3

1шт.

15

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

16

47423212

CLAMP

Exhaust Flap, Cursor 9, SST

1шт.

17

47368254

GASKET,133.8mm ID x 154mm OD x 4.6mm Thk

5", Exhaust

3шт.

18

47368240

CLAMP

Marmom, 5"

3шт.

19

47396822

EXHAUST SYSTEM PIPE

Stack

1шт.

20

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

7шт.

21

84536921

CABLE TIE,203.2mm L

W / Fir Tree

1шт.

22

BN570007

STRAP

14"

4шт.

23

84407295

BASE

M8 Stud

4шт.

24

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

25

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

26

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

27

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

29шт.

28

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

9шт.

29

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

30

86981473

CARRIAGE BOLT

M10 x 25mm, DOR

8шт.

31

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5mm, DOR

6шт.

32

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

10шт.

33

87341745

BOLT,Hex, M16 x 50mm, Cl 8.8

M16 x 50mm, DOR

6шт.

34

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

35

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

36

87430634

CLAMP,159.5mm ID

Muffler / Elbow

1шт.

37

84583310

HOSE

Straight Connector

1шт.

38

BN310449

CLAMP,50mm - 65mm

Hose, SST

2шт.

39

BN310002

BUMPER

1" OD x 1" High

1шт.

40

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

1шт.

Выбрано товаров: 40
