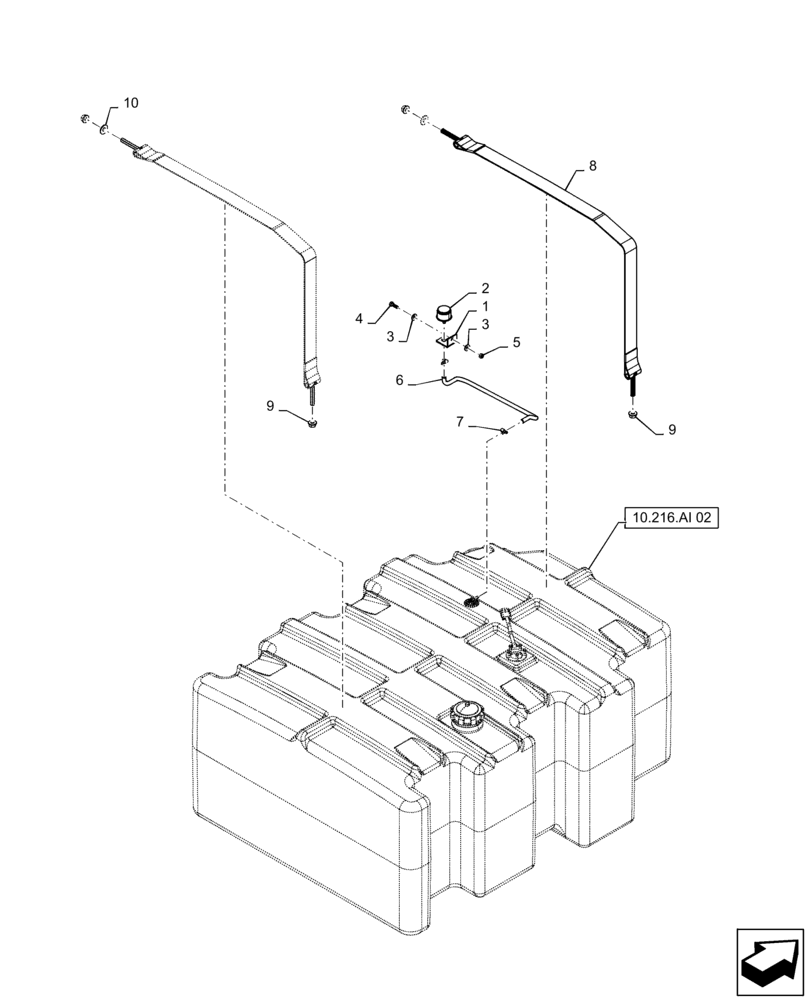

Запчасти Case IH TITAN 3040 (10.216.AI[01]) - FUEL TANK, MOUNTING STRAPS, AND BREATHER (10) - ENGINE

1

47524123

BRACKET

Fuel Tank Vent

1шт.

2

86999949

FUEL FILTER

Fuel Tank Vent

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

6

87269751

FUEL HOSE

Tank Vent

1шт.

7

87485000

CLAMP,0.25" - 0.62"

Hose, M #04 SST, 300 SER

2шт.

8

84369529

STRAP

Fuel. DEF Tank

3шт.

9

87343935

FLANGE NUT

P/T 1/2-13 GR G DOR

6шт.

10

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083 CST DOR

3шт.
