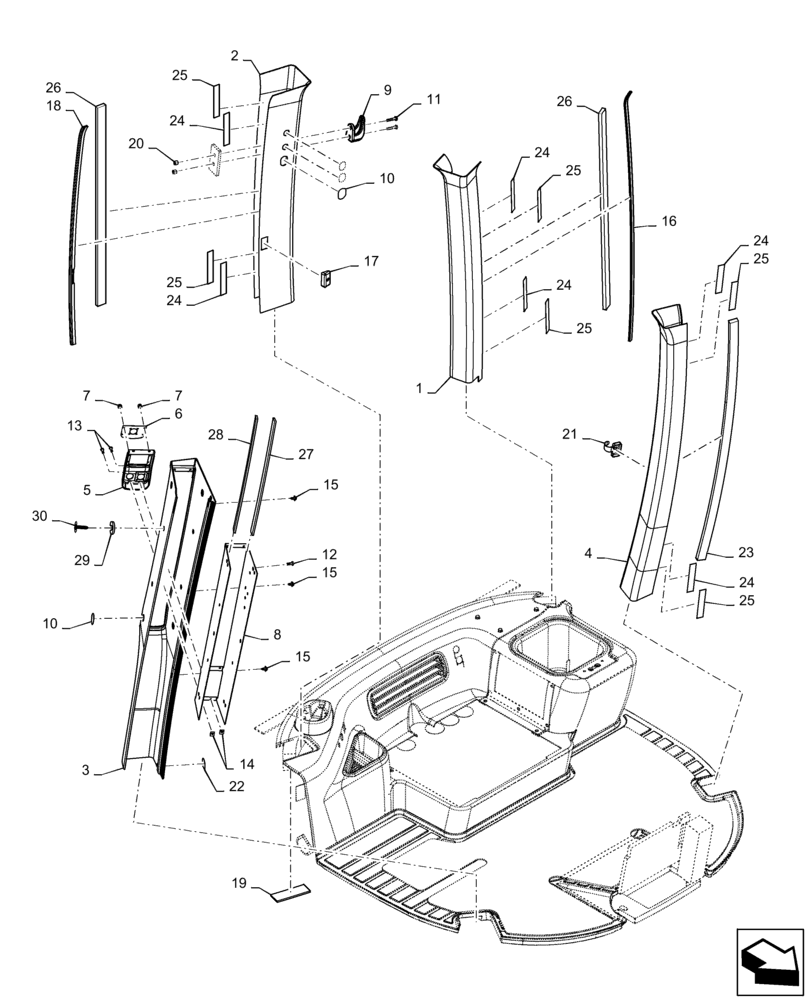

Запчасти Case IH TITAN 3040 (90.160.AF[02]) - INTERIOR TRIM, POSTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84268814

COVER

LH, C - Post

1шт.

2

84304557

COVER

RH, C - Post, Wheat

1шт.

3

47608974

COVER

RH, A - Post

1шт.

4

84124845

COVER

LH, A - Post

1шт.

5

414926A1

BEZEL

RH, A - Post

1шт.

6

87725301

PANEL

Controller Port

1шт.

7

383986A1

RIVET

3.3 x 11.7 Break Mandrel

4шт.

8

47553761

BRACKET

Support Instrument

1шт.

9

114549A1

COAT HOOK

1шт.

10

376597A2

DECAL

Hole Cover

8шт.

11

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

2шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

13

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

2шт.

14

177269A1

SPRING NUT,M4.2

3шт.

15

376553A1

FASTENER

Christmas Tree

3шт.

16

84252188

TRIM,1226mm L

Post Cover, LH

1шт.

17

84252639

DOOR COVER

RH Latch

1шт.

18

84252190

TRIM,1049mm L

Post Cover, RH

1шт.

19

356717A1

TAPE

PSA

1шт.

20

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

21

84290530

COVER

LH DOOR LATCH

1шт.

22

87751236

DECAL

Hole Cover

1шт.

23

349366A2

FOAM

Tape

1шт.

24

356789A1

FASTENER

Velcro Hook

6шт.

25

357564A1

FASTENER

Velcro Loop

6шт.

26

84413000

TAPE

Foam Bulkroll

2шт.

27

47553758

FOAM

Strip

1шт.

28

47553758

FOAM

Strip

1шт.

29

47553760

FOAM

Ring

4шт.

30

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

4шт.

31

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

Not Shown

4шт.
