Запчасти Case IH TITAN 3040 (90.151.AC [02]) - LUXURY CAB, LEATHER, SEAT, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

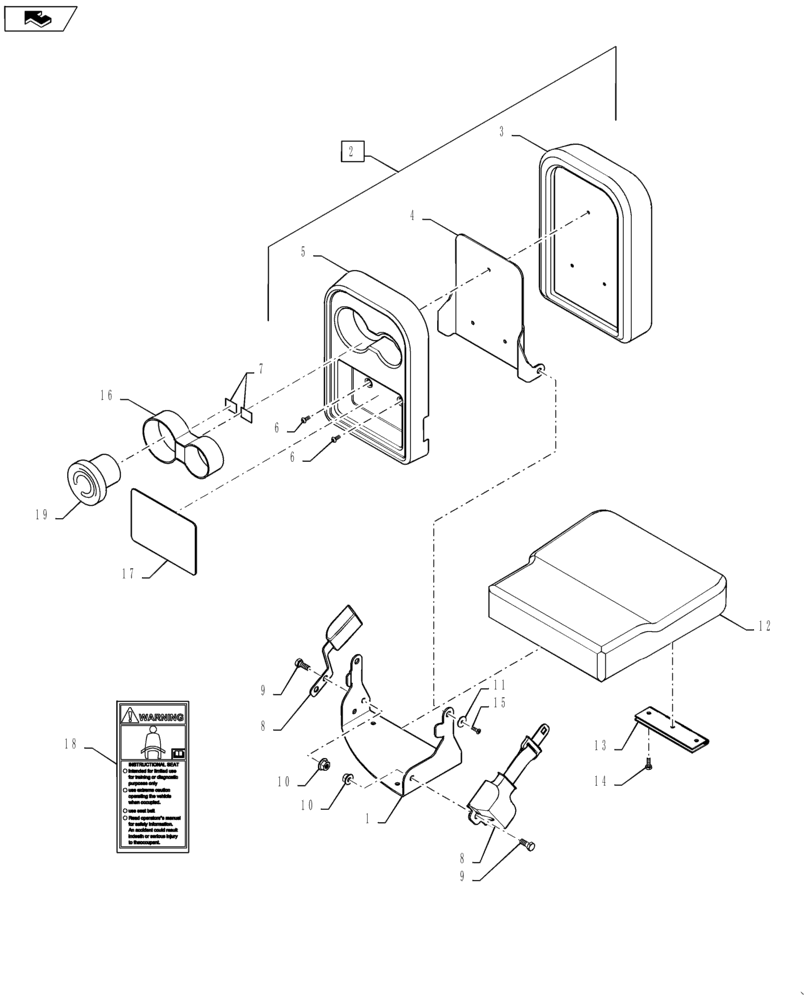

Схема запчастей Case IH TITAN 3040 - (90.151.AC [02]) - LUXURY CAB, LEATHER, SEAT, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
3
5
9
9
6
2
16
10
8
7
14
8
19
11
17
13
18
home
4
1
15
12
10

Артикул

Название

Примечание

Количество

1

84466524

BRACKET

Instructional Seat - Europe ONLY

1шт.

2

84466519

SEAT CUSHION

Cushion Assembly, Back, Leather, Inc. 3 - 6

1шт.

2

84466518

SEAT CUSHION

Assembly, Back, Cloth, Inc 3 - 6

1шт.

3

84142716

SEAT CUSHION

Instructional, Back, Leather

1шт.

3

87484466

SEAT CUSHION

Instructional, Back, Cloth

1шт.

4

252928A2

BRACKET

Rear Cushion

1шт.

5

358330A1

TRAY

Instructional Seat Storage

1шт.

6

340-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

3шт.

7

406682A1

FASTENER

Dual Lock

2шт.

8

281926A2

SAFETY BELT

Instructional Seat

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

10

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

11

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

12

84354322

SEAT CUSHION

Instructional, Leather

1шт.

12

84354319

SEAT CUSHION

Instructional, Cloth

1шт.

13

84373454

HINGE

Instructional Seat

1шт.

14

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

15

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

16

369635A2

HOLDER

Cup, Insert

1шт.

17

394828A1

INSERT

Insert, Instructional Seat

1шт.

18

410704A1

WARNING DECAL

Instructional Seat, A-Post

1шт.

19

302456A1

ASH TRAY

If Used

1шт.

Выбрано товаров: 22
