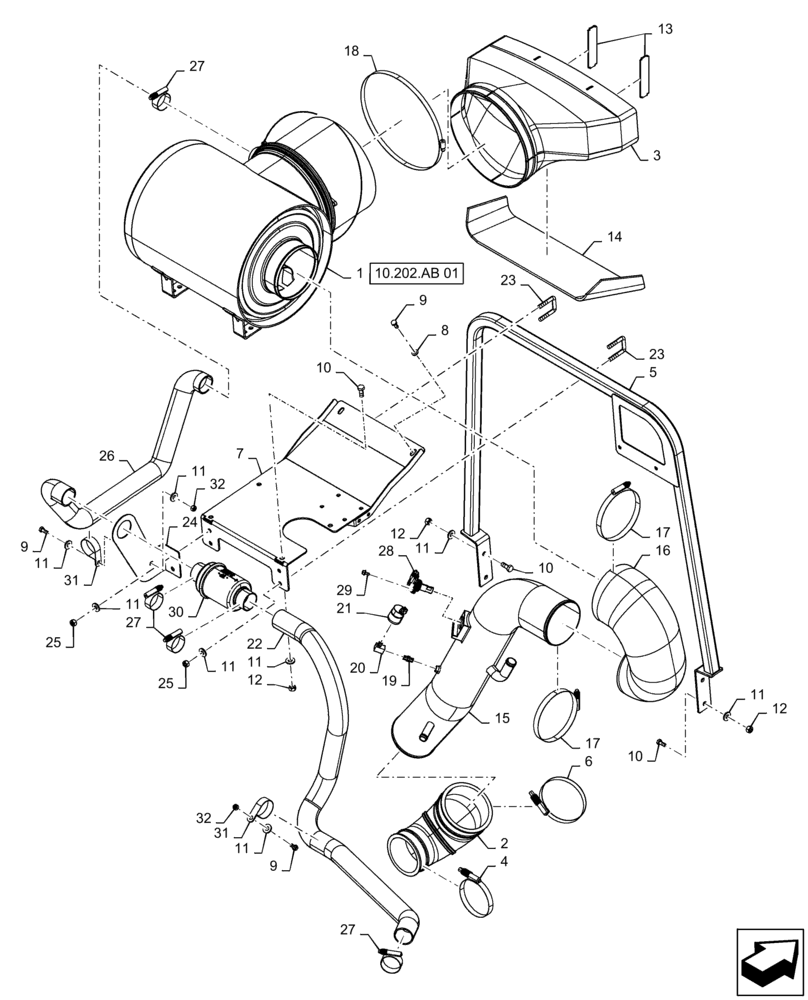

Запчасти Case IH TITAN 3040 (10.202.BD[01]) - AIR CLEANER & INTAKE PARTS, AND MOUNTING (10) - ENGINE

1

47606521

CLEANER

Complete

1шт.

See 10.202.AB 01 For Service

1шт.

2

47562716

90 ELBOW

90°

1шт.

3

84141992

AIR DUCT

Intake

1шт.

4

87525506

CLAMP,3.75" - 4.62", Worm Gear

Hose

1шт.

5

47570856

MOUNT

Air Cleaner

1шт.

6

L124802

COLLAR CLAMP

1шт.

7

84194714

MOUNT

Air Cleaner

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

15шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

13

84180157

PLATE

Standoff

2шт.

14

344093A1

FOAM INSULATION

Reflective

1шт.

15

84363174

AIR INTAKE TUBE

1шт.

16

324459A1

ELBOW

180 Rubber

1шт.

17

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

2шт.

18

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

19

D36264

FITTING

EPDM

1шт.

20

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

21

279492A1

RESTRICTION SWITCH

Air

1шт.

22

47495591

HOSE

Bulk, 2" ID

1шт.

23

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

3/8 X 1.31"

2шт.

24

47555407

BRACKET

Check Valve

1шт.

25

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.

26

BN306561

HOSE

Bulk, 1-1/2" ID

1шт.

27

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

4шт.

28

87482355

SENSOR

Humidity And Temperature

1шт.

29

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

Flange, M6 X 12, Full, 10.9 ZND

2шт.

30

87443913

VALVE

Aspirator Check

1шт.

31

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

32

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.
