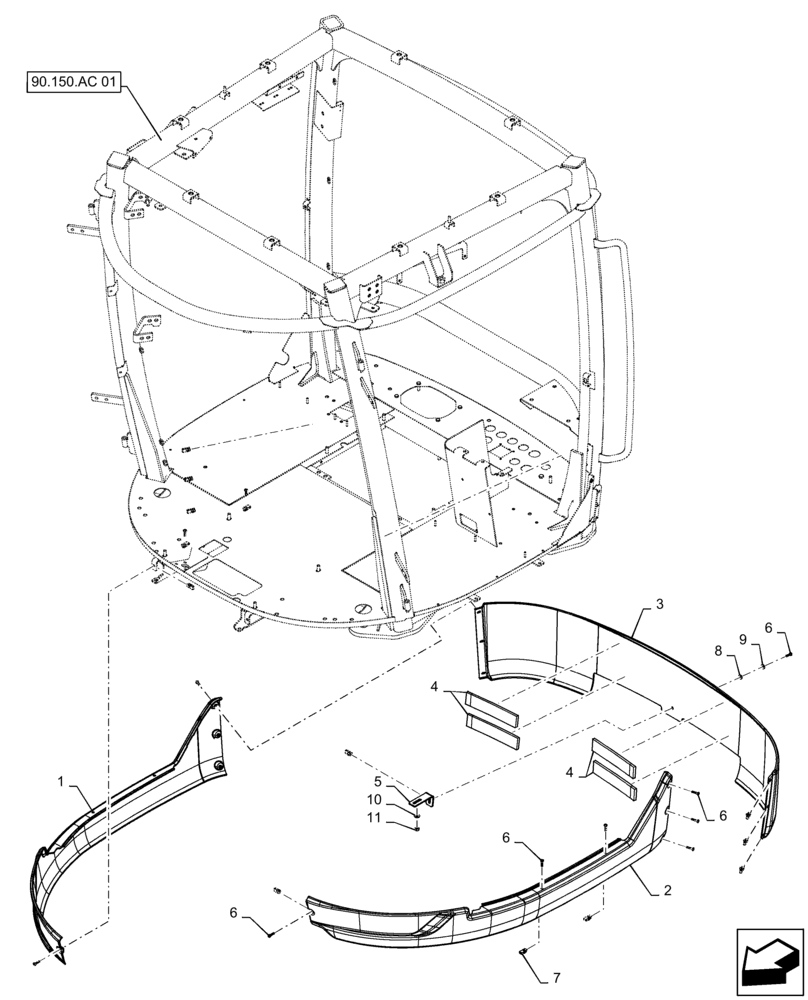

Запчасти Case IH TITAN 3040 (90.150.BJ[02]) - CAB SKIRTS, RH AND LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47598108

SKIRT

RH, Cab

1шт.

2

47598105

COVER

LH, Cab

1шт.

3

47598107

COVER

Rear Skirt Assembly

1шт.

4

403325A2

FOAM,30mm x 50mm x 250mm

Close Cell, Spacer

1шт.

5

47598106

BRACKET

Cab Skirt

13шт.

6

87343619

SCREW,Phil Pan Hd, M6 x 25mm, Cl 4.8, Full Thd

13шт.

7

404882A1

SPRING NUT,M6

M6, Wide Range

4шт.

8

47447682

RUBBER WASHER,5.8mm ID x 15.9mm OD x 2.4mm Thk

EPDM

1шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.
