Запчасти Case IH TITAN 3040 (90.150.BG[01]) - CAB ROOF, ASSY, AND LIGHTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

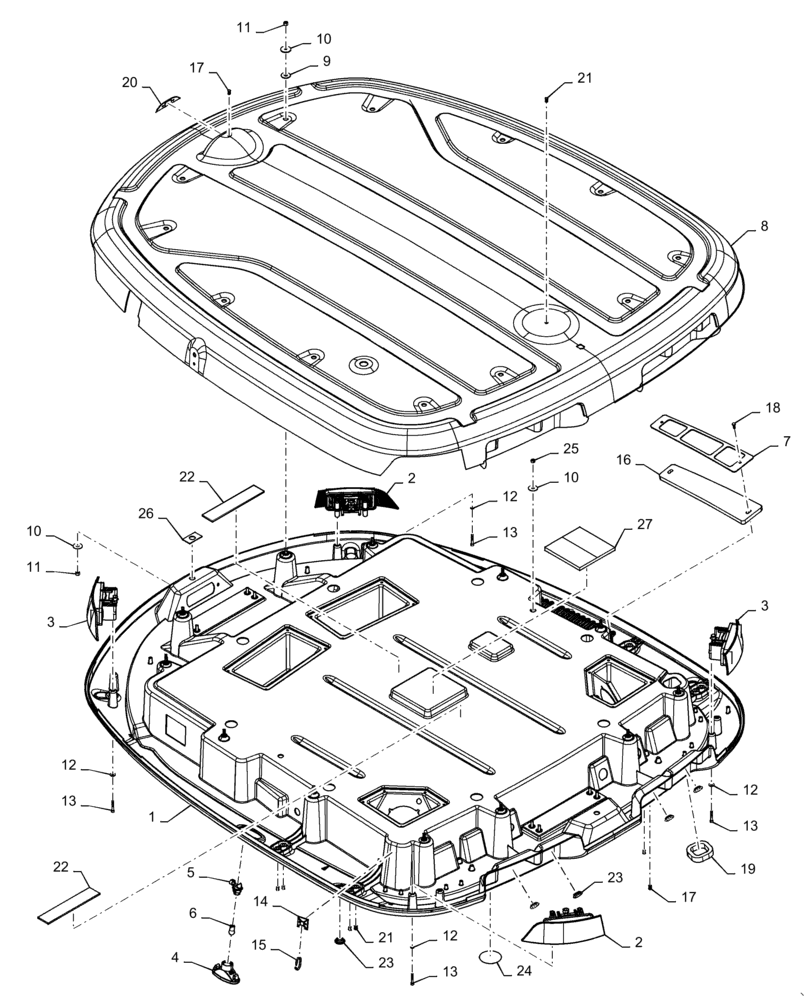

Схема запчастей Case IH TITAN 3040 - (90.150.BG[01]) - CAB ROOF, ASSY, AND LIGHTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
6
13
10
13
10
14
17
16
2
21
15
11
7
22
12
10
2
3
24
26
17
25
19
11
12
13
9
3
4
27
20
1
12
23
13
5
18
21
22
23
12

Артикул

Название

Примечание

Количество

1

47567294

ROOF

Lower Assembly

1шт.

2

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Front, RH, CIH

2шт.

3

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Front, LH, CIH

2шт.

4

87301963

CEILING LAMP,12V

Puddle

1шт.

5

87304554

HOLDER

Lamp Puddle

1шт.

6

14149590

BULB,12V, 10W

12V

1шт.

7

84303099

COVER PLATE

HVAC Filter

1шт.

8

47647972

ROOF

Upper Assembly, CIH

1шт.

9

221429A2

SPACER

Door Handle

12шт.

10

495-81140

WASHER,13/32" x 1 1/4" x .060"

16шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

14шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

13

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

18шт.

14

435436A1

RUBBER MOUNTING

Adhesive Backed

9шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

9шт.

16

84211797

AIR FILTER

Cab, Roof

1шт.

17

353-401

PLUG,Dome, .312" hole, Nylon

9шт.

18

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

2шт.

19

84211795

GASKET

HVAC Intake, Roof

1шт.

20

84257768

COVER

No Autoguidance, CIH

1шт.

21

353-402

PLUG,Dome, .375" hole, Nylon

9шт.

22

403325A2

FOAM,30mm x 50mm x 250mm

Close Cell, Spacer

6шт.

23

14507787

PLUG,Retaining Lip, 25mm

Trim M25, Style B

7шт.

24

84353524

DECAL

Cover, No FOPS Plate

9шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

84402690

FOAM INSULATION

Spacer

2шт.

27

84274568

PADDING

FOPS Plate

1шт.

Выбрано товаров: 27
