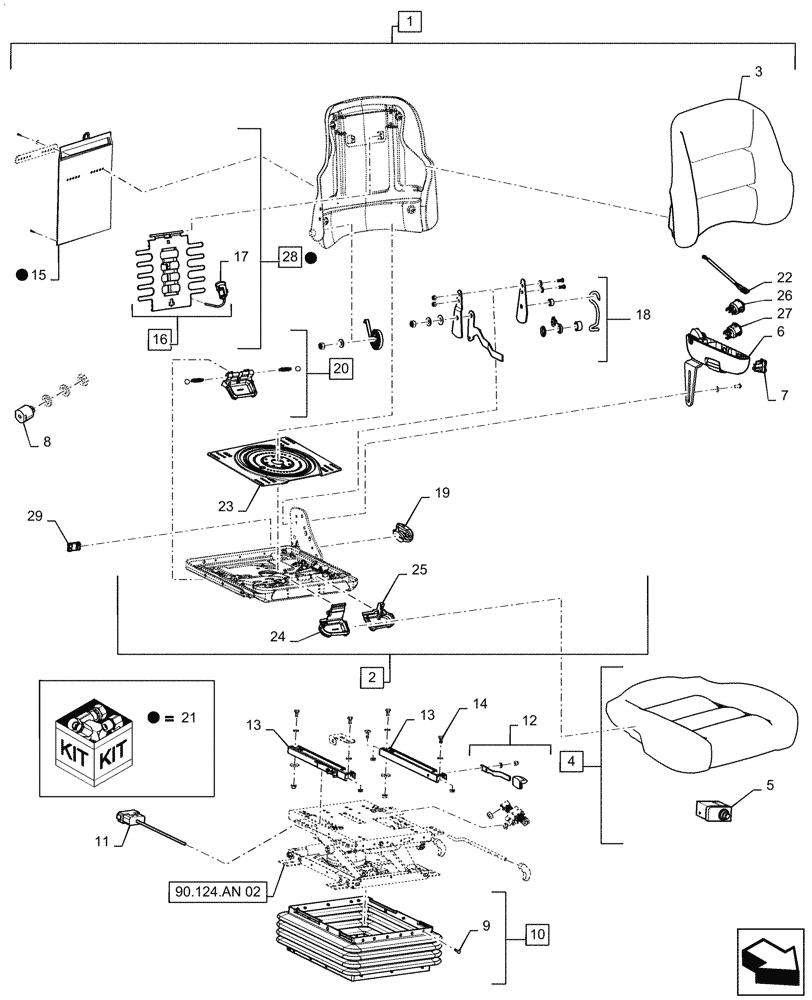

Запчасти Case IH TITAN 3040 (90.124.AE[01]) - LUXURY, LEATHER OPERATOR SEAT, 3 POS HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47491341

DRIVER SEAT

Complete, Incl 2 - 29

1шт.

2

47729582

SERVICE KIT

Seat Frame, Incl 16 - 20, 23 - 25

1шт.

3

47598643

SEAT BACK

Red Leather

1шт.

4

47876639

CUSHION

Bottom, Red Leather, 3 Position Heat, Incl 5

1шт.

5

47876641

PUSH BUTTON SWITCH

Operators Presence, Included In 4

1шт.

6

47598669

ARMREST

Red Leather, W/O Switches

1шт.

7

87347940

ROCKER SWITCH

Seat Height Adjustment

1шт.

8

87396230

BUSHING

Console

1шт.

9

333659A1

PACKAGE,SERVICE

Boot Pins, Included in 10

1шт.

10

47598678

BOOT

Suspension, Inc 9

1шт.

11

84581882

WIRE HARNESS

Seat Suspension, w/ Heat

1шт.

12

47598687

SLIDE

Control Handle

1шт.

13

47598661

SLIDE

Seat, 160mm

1шт.

14

47357001

SERVICE KIT

Cushion Attachment

1шт.

15

47598658

HOLDER

Operators Manual, Included In 21

1шт.

16

47357018

KIT

Seat, Lumbar, Incl 17, Included In 2, 21, 28

1шт.

17

47598681

KNOB

Lumbar, Included In 2, 16, 21, 28

1шт.

18

47357023

KIT

Recliner Assembly, Included In 2

1шт.

19

47357025

KNOB

Recline Control, Included In 2

1шт.

20

47598699

KNOB

Swivel Control, Included In 2

1шт.

21

47598722

SEAT BACK

Pan Kit With Lumbar, And Manual Holder, Incl 15, 28

1шт.

22

47598677

WIRE HARNESS

HVS, Off - Hi - Med - Lo

1шт.

23

47729592

PLATE

Lower Swivel, Included In 2

1шт.

24

47368606

SERVICE KIT

Cushion Tilt Control, Included In 2

1шт.

25

47368613

SERVICE KIT

Thigh Tilt Extension Knob, Included In 2

1шт.

26

47598674

ROCKER SWITCH

Heat, High - Low - Off, SPDT

1шт.

27

47598671

ROCKER SWITCH

Fan, Heat, 3 Position HVS

1шт.

28

47607664

SEAT BACK

Pan Kit, With Lumbar, Incl 15, 16, 17

1шт.

29

47598675

CONTROLLER

HVS

1шт.
