(90.118.CB[01]) - WALKWAY GROUP, RH, 3040, 3540

Запчасти Case IH TITAN 3040 (90.118.CB[01]) - WALKWAY GROUP, RH, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

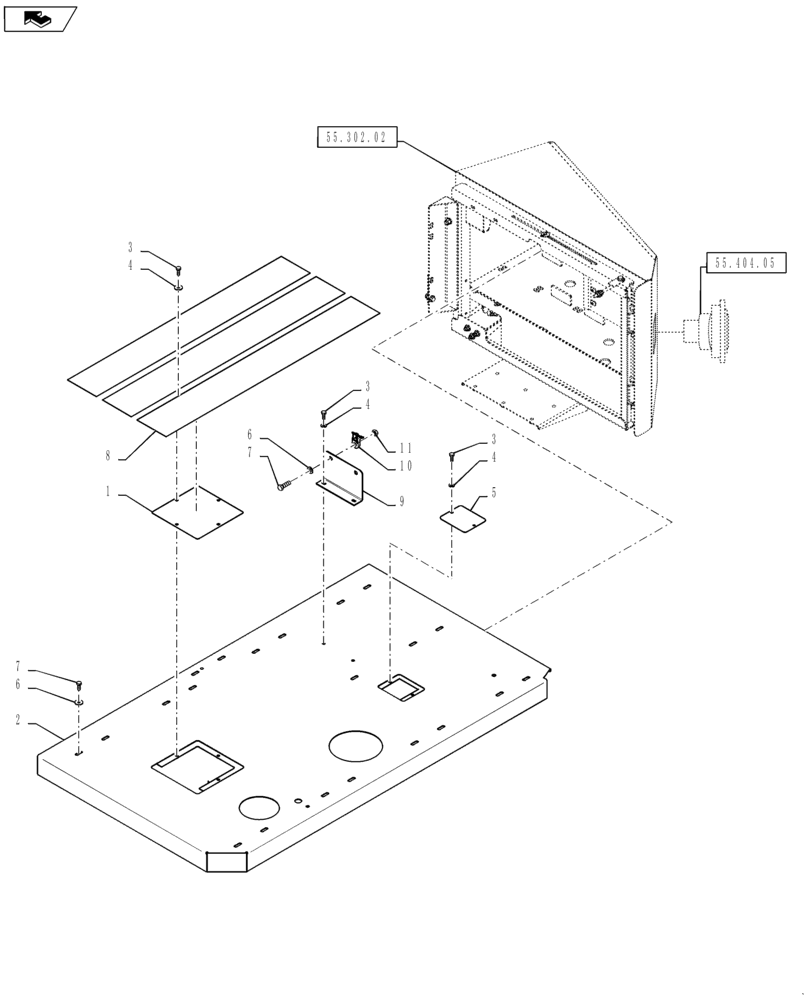

Схема запчастей Case IH TITAN 3040 - (90.118.CB[01]) - WALKWAY GROUP, RH, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.302.02
3
5
2
7
home
55.404.05
8
3
9
4
6
1
3
4
11
7
4
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266048

COVER

Boom Support

1шт.

2

84367434

PLATE

Fuel Tank Top

1шт.

3

87266009

BOLT

M6 - 1 x 16, SS

7шт.

4

BN50138

WASHER,1/4", SS

7шт.

5

84367794

COVER

Fuel Sensor

1шт.

6

BN50146

WASHER,3/8", Stainless

15шт.

7

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

15шт.

8

84367824

STRIP

Safety Walk

3шт.

9

84594145

BRACKET

Inlet Temperature Sensor

1шт.

10

84407295

BASE

Tie, M8 Stud

2шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
