(90.118.BM [05]) - MIRRORS, LOW MOUNT, FLEX-AIR SYSTEM, 3040, 3540

Запчасти Case IH TITAN 3040 (90.118.BM [05]) - MIRRORS, LOW MOUNT, FLEX-AIR SYSTEM, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

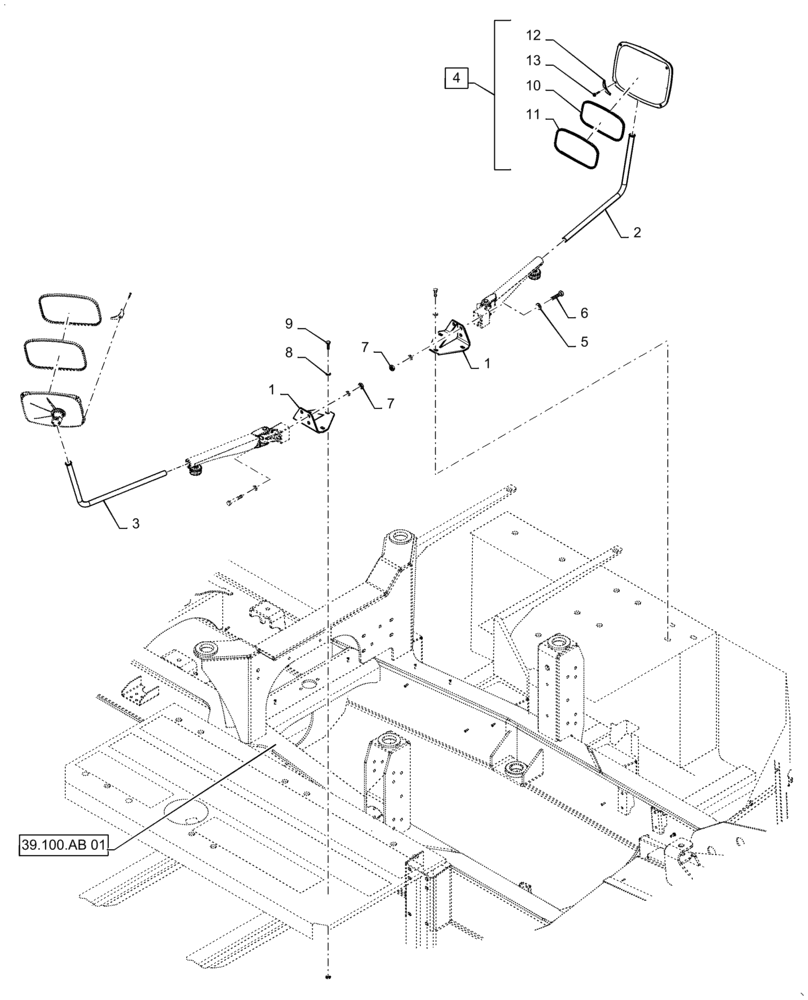

Схема запчастей Case IH TITAN 3040 - (90.118.BM [05]) - MIRRORS, LOW MOUNT, FLEX-AIR SYSTEM, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
9
5
6
8
7
13
12
1
3
2
7
39.100.ab 01
10
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268069

BRACKET

Mounting, Mirror

2шт.

2

87594290

ARM

Mirror, Lower Left Hand

1шт.

3

87594289

ARM

Mirror, Lower Right Hand

1шт.

4

87350494

MIRROR ASSY.,240mm x 329mm

Manual, Incl 10 - 13

2шт.

5

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

6

86980428

BOLT,Hex, M12 - 1.75 x 80mm, Cl 8.8, DOR

M12 - 1.75 x 80, 8.8, DOR

4шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

8

BN50146

WASHER,3/8", Stainless

1шт.

9

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

1шт.

10

324437A1

REPLACEMENT MIRROR

Glass

1шт.

11

82035218

MIRROR,300mm x 200mm

Lens, Acrylic, 300mm x 200mm

1шт.

12

87531094

BRACKET

Manual Mirror Head

4шт.

13

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.
