(90.118.AX[02]) - HANDRAIL, USED WITH 610 LIQUID SYSTEM, 3040, 3540

Запчасти Case IH TITAN 3040 (90.118.AX[02]) - HANDRAIL, USED WITH 610 LIQUID SYSTEM, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

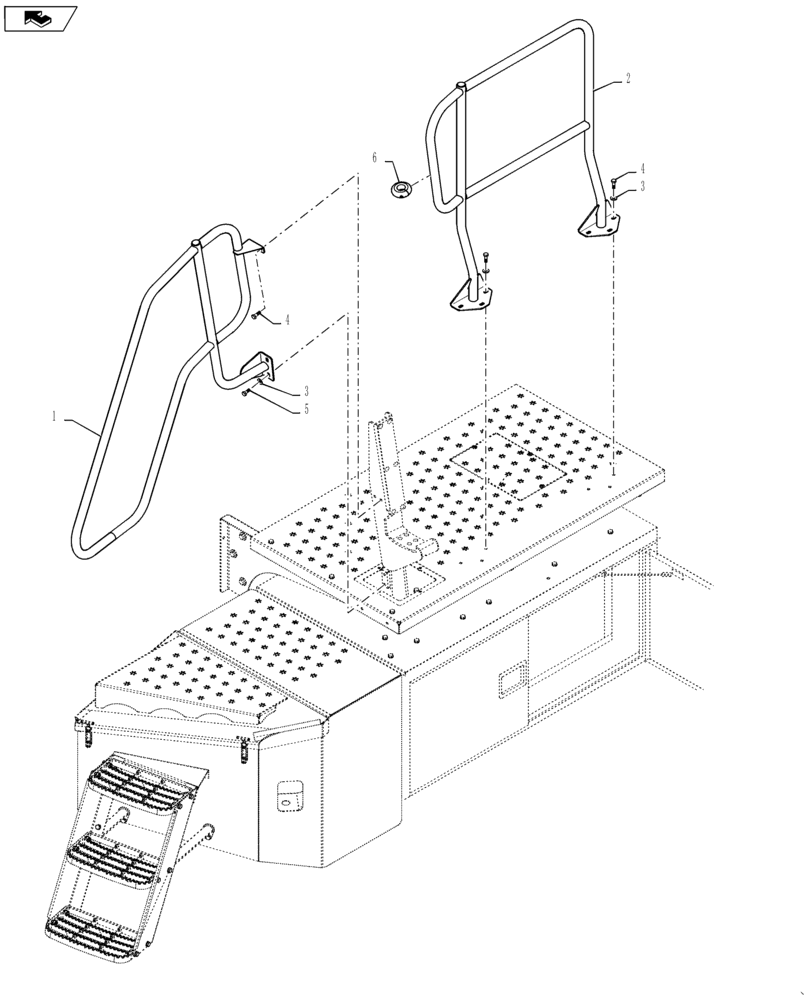

Схема запчастей Case IH TITAN 3040 - (90.118.AX[02]) - HANDRAIL, USED WITH 610 LIQUID SYSTEM, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
2
1
3
3
6
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

344386A1

HANDRAIL

Front

1шт.

2

344385A1

HANDRAIL

Rear

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

4

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

6

87267174

BUMPER

Tubular, Door Stop

1шт.

Выбрано товаров: 6
