(90.118.AE[03]) - STEP EXTENSION

Запчасти Case IH TITAN 3040 (90.118.AE[03]) - STEP EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

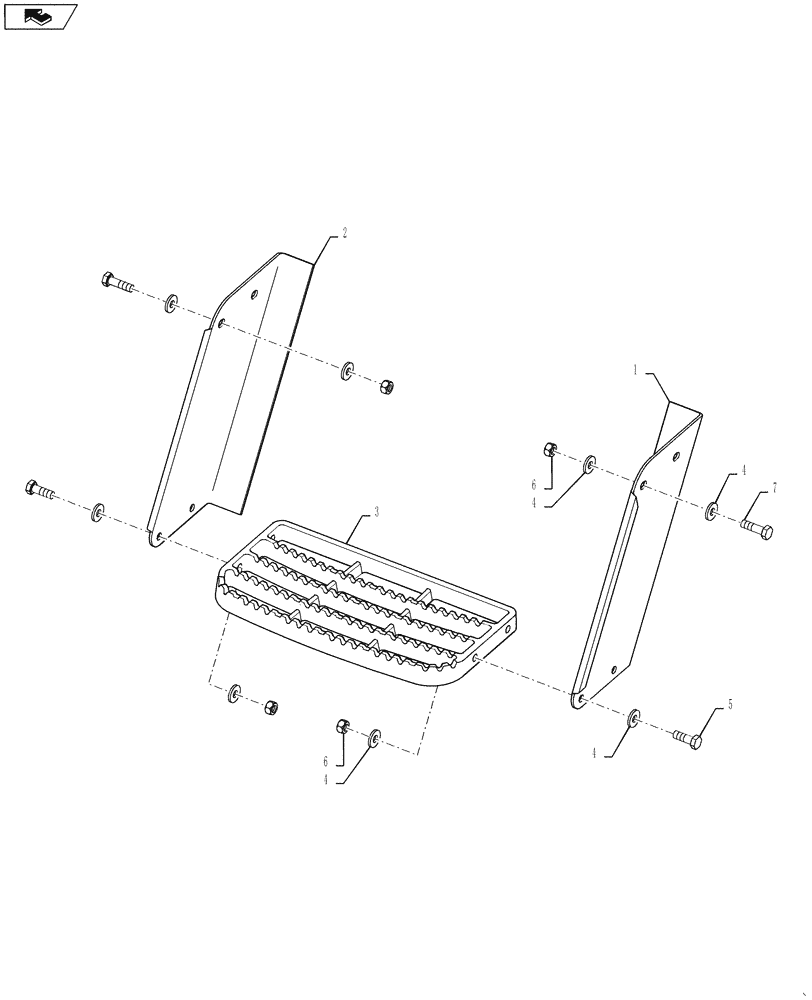

Схема запчастей Case IH TITAN 3040 - (90.118.AE[03]) - STEP EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
6
home
7
4
4
6
2
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84427242

SUPPORT

Step Extension, Outer

1шт.

2

84427243

SUPPORT

Step Extension, Inner

1шт.

3

87270245

STEP

Cast Aluminum

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

7

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 7
