Запчасти Case IH TITAN 3040 (10.001.AK[01]) - ENGINE MOUNTS (10) - ENGINE

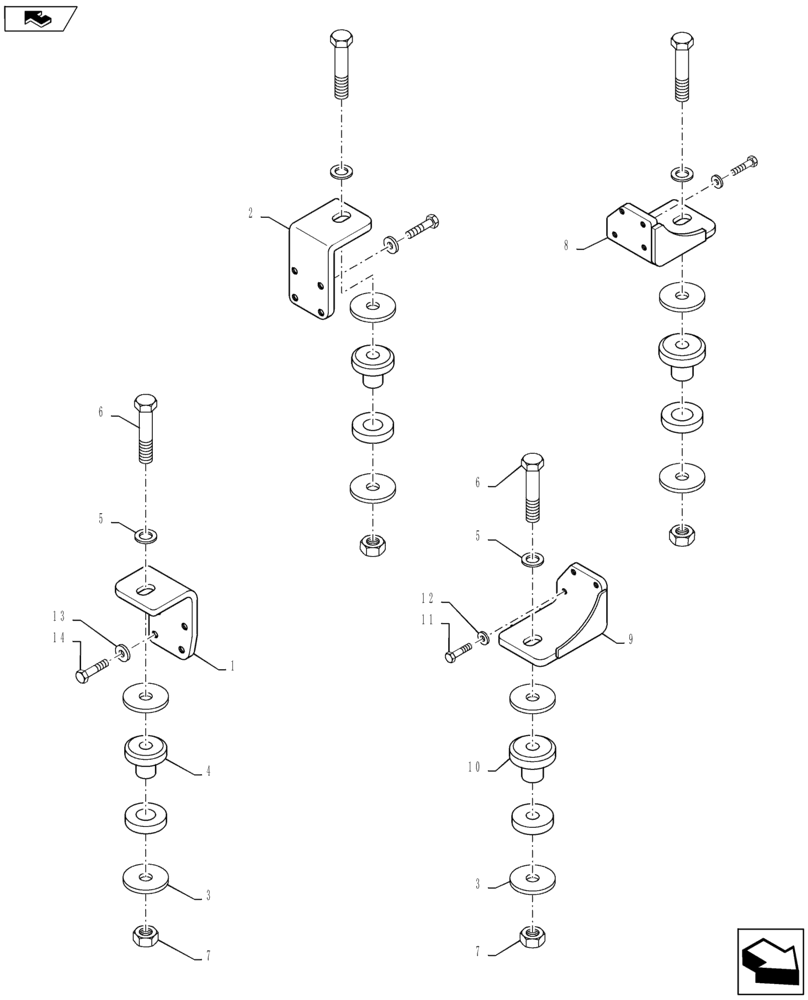

Схема запчастей Case IH TITAN 3040 - (10.001.AK[01]) - ENGINE MOUNTS (10) - ENGINE
4
6
2
14
12
3
5
5
7
7
9
10
8
6
3
1
11
13

Артикул

Название

Примечание

Количество

1

84158292

ENGINE MOUNT

Rear, RH

1шт.

2

84158291

ENGINE MOUNT

Rear, LH

1шт.

3

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound

8шт.

4

361187A1

ISOLATOR

Rubber, Engine Mount

2шт.

5

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

24 x 44 x 4mm, HDN, DOR

4шт.

6

87342027

BOLT,Hex, M22 x 2.5 x 140mm, Cl 10.9

4шт.

7

87344025

NUT,Prev Torque, M22, 2.5 Pitch, Cl 10, DOR

4шт.

8

84158293

ENGINE MOUNT

Front, LH

1шт.

9

84158294

ENGINE MOUNT

Front, RH

1шт.

10

84280914

ENGINE MOUNT,88.9mm OD x 73.2mm L

Isolator

2шт.

11

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

8шт.

12

87672180

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

13

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm, HDN, DOR

8шт.

14

87342037

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

Выбрано товаров: 14
