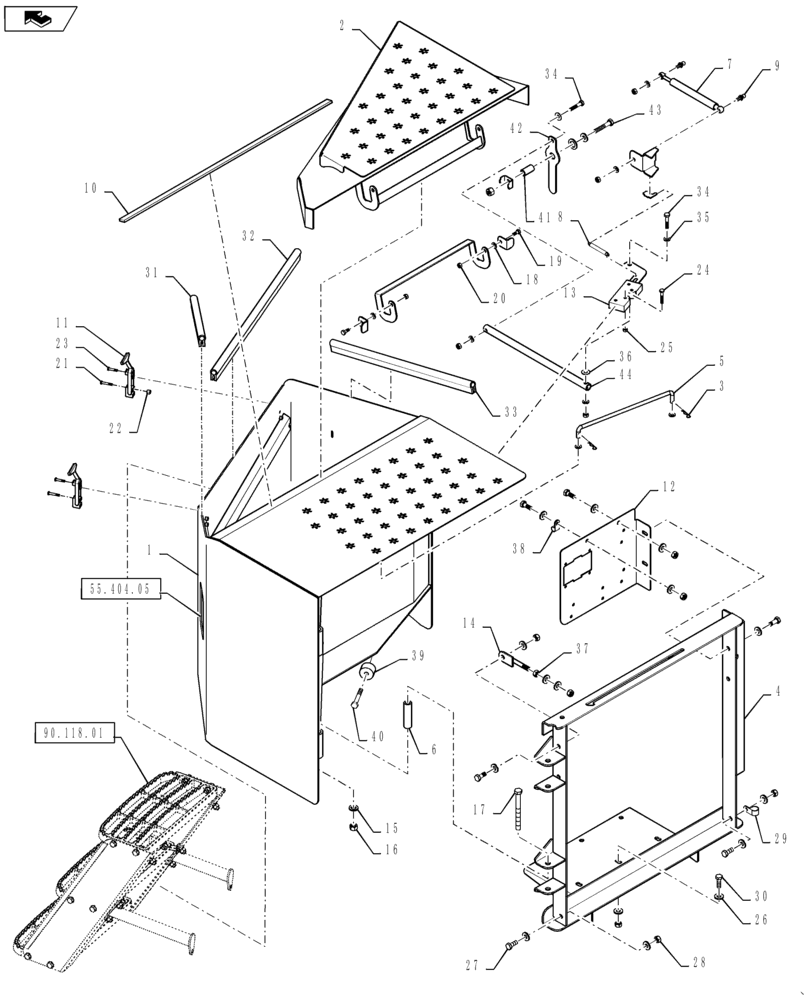

Запчасти Case IH TITAN 3040 (90.118.AE[02]) - LADDER STORAGE BOX, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87265423

BOX

Walkway

1шт.

2

344259A1

COVER PLATE

Storage

1шт.

3

BN71006

COTTER PIN

1/8"

2шт.

4

87269637

MOUNTING PLATE

Ladder Box

1шт.

5

87265547

ROD

Door Stop

1шт.

6

86986835

TUBE,12.10 mm ID x 20.40 mm OD x 78 mm L

2шт.

7

87265558

CYLINDER

Gas

1шт.

8

BN30670

SPRING

1шт.

9

86013811

STUD

Ball

2шт.

10

87269585

SEAL

Step Cover

1шт.

11

BN309337

LATCH

Flexible

2шт.

12

84473710

MOUNT

Solenoid Valves

1шт.

13

87265437

LATCH

1шт.

14

87266593

SUPPORT

Rod

1шт.

15

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

16

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

17

86980432

BOLT,Hex, M12 x 120mm, Cl 8.8

M12 X 120, CL8, DOR

2шт.

18

BN50146

WASHER,3/8", Stainless

3шт.

19

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

21

87343612

SCREW,Phil Pan Hd, M5 x 30mm, Cl 4.8, Full Thd

M5 X 30, CL4, DOR

4шт.

22

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

23

87343604

SCREW,Phil Pan Hd, M5 x 25mm, Cl 4.8, Full Thd

M5 X 25, CL4, DOR

2шт.

24

87342591

BOLT

.250 X 1.50, Full, GR5, DOR

4шт.

25

87343957

NUT,1/4" - 20

1/4, GR8, DOR

4шт.

26

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

31шт.

27

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

7шт.

28

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

15шт.

29

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

30

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

31

87265434

SEAL

Bulb

1шт.

32

87265433

SEAL

Bulb

1шт.

33

87265432

SEAL

Bulb

1шт.

34

86980383

BOLT,Hex, M8 x 40mm, Cl 8.8

M8 - 1.25 x 40, 8.8, DOR

2шт.

35

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

9шт.

36

BN50142

WASHER,5/16", Stainless Steel

5/16 Stainless

2шт.

37

87344209

NUT,M10 x 1.5, Cl 10, DOR

1шт.

38

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

39

87268827

ROLLER

Plastic

1шт.

40

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10 X 70, CL8, DOR

1шт.

41

87265440

BUSHING

Handle

1шт.

42

87265441

HANDLE

PPE Box

1шт.

43

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

M10 X 55, CL8, DOR

1шт.

44

87265442

TUBE,13.50 mm ID x 19.10 mm OD x 392 mm L

Push

1шт.
